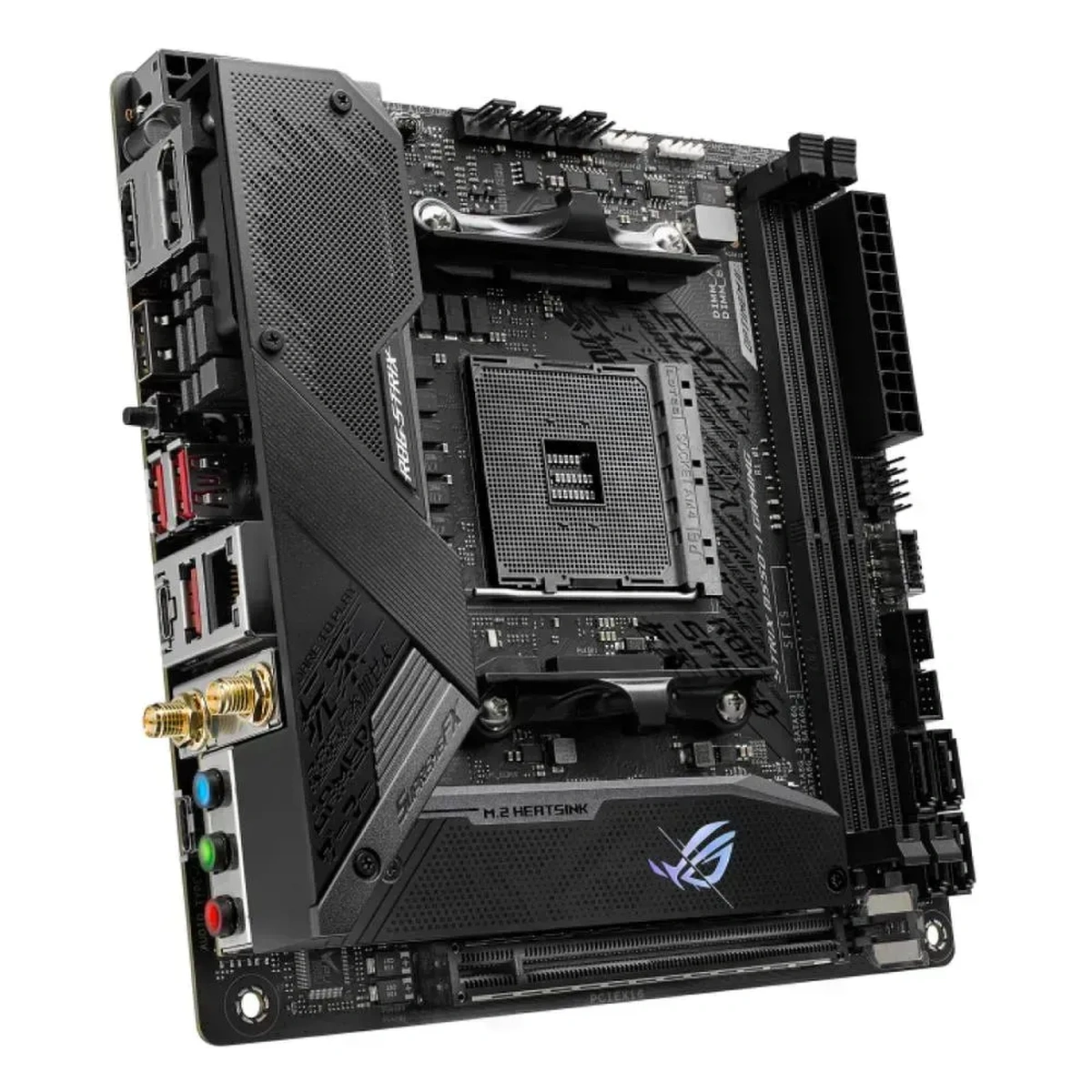

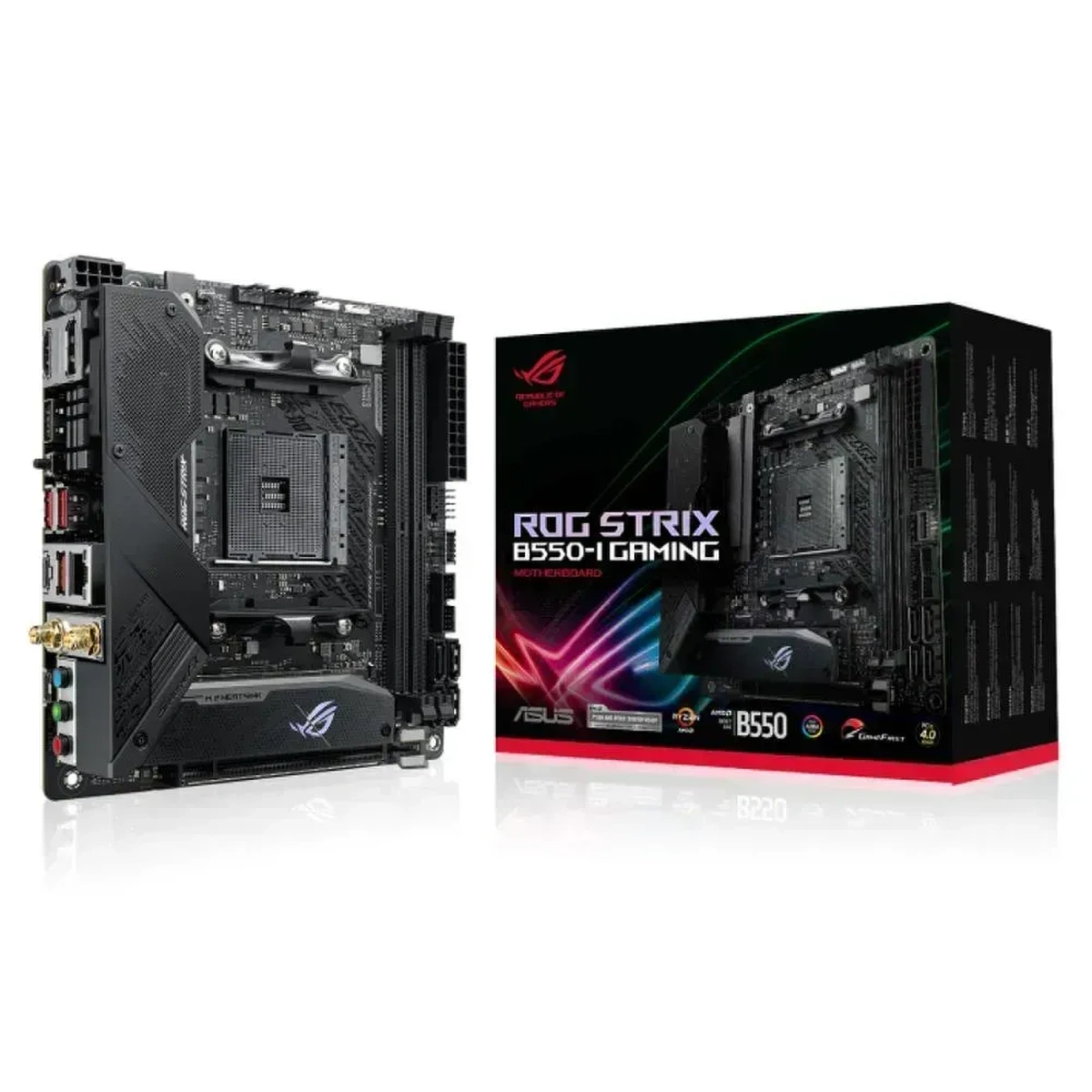

Placa Madre Mini ITX ASUS ROG STRIX B550-I Gaming AMD AM4 DDR4 WiFi 6
* Imágenes referenciales
$259.070
Con Transferencia / Efectivo
$273.320
Con Tarjetas de Crédito / Débito
Agotado
RETIRO EN TIENDA
Contáctanos para saber fecha de reposición
Contáctanos para saber fecha de reposición
Qué opinan nuestros clientes en
-
Compré gabinete y placa y llegó todo en orden, excelente servicio, puedo comentar que son una empresa seria, de confianza … Ver más y totalmente recomendable, el despacho lo debo destacar, muy rápido! Muchas gracias, se pasaron!.
Quería agregar mi experiencia posterior con los productos, específicamente con la Placa Madre, armé mi PC gamer, encendió sin problemas, instale sistema operativo y unos minutos después se apagó y la placa dio led de error en DRAM, desconecté todo y volví a ensamblar de nuevo, funcionó, pero después se volvió a apagar y dió LED de error en CPU, desarmé de nuevo y la placa no arrancó más!.
Fuente: Ratings en Google (ver)
Descripción
Starting at
Placa Madre Mini ITX ASUS ROG STRIX B550-I Gaming AMD AM4 DDR4 WiFi 6
Las tarjetas madre de la serie ROG Strix B550 Gaming ofrecen buena parte de las características que puedes encontrar en la serie de gama alta ROG Strix X570 Gaming, como por ejemplo PCIe® 4.0. Con un suministro de energía potente y una refrigeración eficaz, la serie ROG Strix B550 Gaming está optimizada para las CPU AMD Ryzen™ de 3.ª Gen. Con una estética futurista y el intuitivo software ROG, la ROG Strix B550-F Gaming es la plataforma ideal para montar el equipo de tus sueños.
ROG STRIX B550-I GAMING
Starting at
Save
CPU
AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
* Refer to
www.asus.com
for CPU support list
Chipset
AMD B550
Memoria
2 x DIMM, Max. 64GB, DDR4 5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
OptiMem II
3rd Gen AMD Ryzen™ Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Gráficos
1 x HDMI 2.1(4K@60HZ) *
1 x DisplayPort 1.4 *
*Graphics specifications may vary between CPU types.
Slots de Expansión
1 x PCIe 4.0 x16 (x16 mode)
Almacenamiento
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
4 x SATA 6Gb/s port(s),
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen™ Processors :
Support Raid 0, 1, 10
LAN
Intel
®
I225-V 2.5Gb Ethernet
ASUS LANGuard
Datos de redes inlámbricas
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Intel
®
Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A
– Rear audio USB Type-C
®
port
– LED-illuminated design
– Audio Shielding
– Premium Japanese audio capacitors
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Supports up to 32-Bit/192kHz playback *
Audio Feature :
Puertos USB
4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C
®
+3 x Type-A)
1 x USB 2.0 port(s)(1 x audio USB Type-C
®
)
Front USB Port
( Total 5 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C
®
)
Rear USB Port
( Total 6 )
1 x USB 2.0 port(s)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Software Features
ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS ® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– Aura Creator
– Aura Sync
-AI Noise Cancelling Microphone
AI Suite 3:
– 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
– EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS ® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– Aura Creator
– Aura Sync
-AI Noise Cancelling Microphone
AI Suite 3:
– 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
– EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features
Aura Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
ASUS Q-Design
– ASUS Q-CODE
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
– SafeSlot
Rear audio USB Type-C ® connector
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
ASUS Q-Design
– ASUS Q-CODE
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
– SafeSlot
Rear audio USB Type-C ® connector
Puertos I/O Traseros
4 x USB 3.2 Gen 2 (1 x USB Type-C
®
+3 x Type-A)
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack
™
1 for audio USB Type-C
®
)
1 x BIOS FlashBack
™
Button(s)
1 x Intel
®
I225-V 2.5Gb Ethernet
3 x LED-illuminated audio jacks
1 x ASUS Wi-Fi Module
1 x DisplayPort
1 x HDMI
Internal I/O
1 x VRM_HS_FAN Header
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Aura RGB Strip Header(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Chassis Fan connector(s)
1 x Thermal sensor connector(s)
1 x System panel connector
1 x Speaker connector
1 x CPU Fan connector(s)
1 x AIO_PUMP connector
1 x Addressable Gen 2 header(s)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)

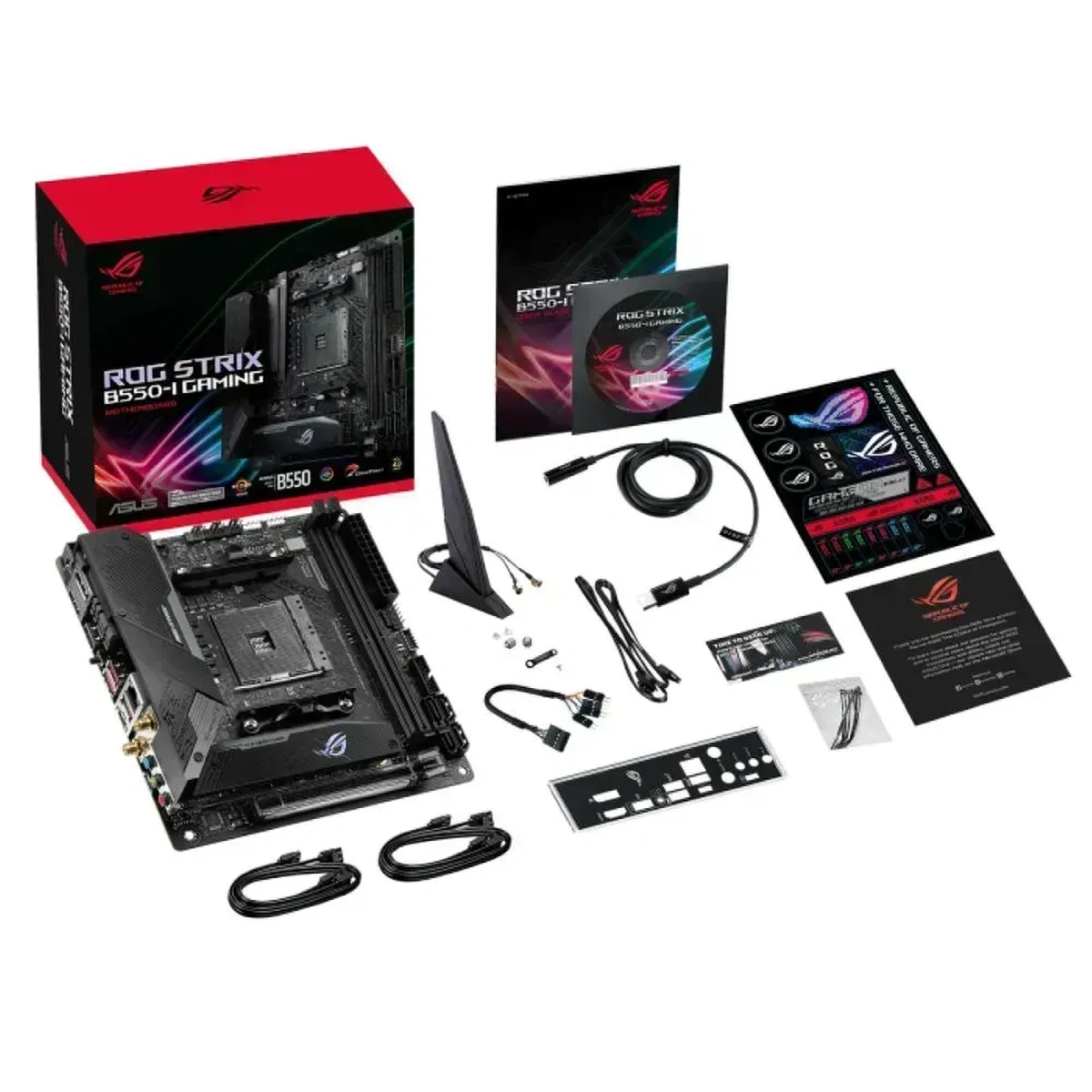

Accessorios
1 x ROG audio USB Type-C
®
cable
1 x M.2 bracket
1 x Panel cable
2 x M.2 Screw Package
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
User´s manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Capacidad de gestión
WOL by PME, PXE
Sistema Operativo
Windows
®
10 64-bit
Factor de forma
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Nota
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.
Especificaciones
ROG STRIX B550-I GAMING
CPU
AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
* Refer to www.asus.com for CPU support list
Chipset
AMD B550
Memoria
2 x DIMM, Max. 64GB, DDR4 5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
OptiMem II
3rd Gen AMD Ryzen™ Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Gráficos
1 x HDMI 2.1(4K@60HZ) *
1 x DisplayPort 1.4 *
*Graphics specifications may vary between CPU types.
Slots de Expansión
1 x PCIe 4.0 x16 (x16 mode)
Almacenamiento
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
4 x SATA 6Gb/s port(s),
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen™ Processors :
Support Raid 0, 1, 10
LAN
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Datos de redes inlámbricas
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A
– Rear audio USB Type-C® port
– LED-illuminated design
– Audio Shielding
– Premium Japanese audio capacitors
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Supports up to 32-Bit/192kHz playback *
Audio Feature :
Puertos USB
4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C® +3 x Type-A)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
Front USB Port ( Total 5 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
Rear USB Port ( Total 6 )
1 x USB 2.0 port(s)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Software Features
ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– Aura Creator
– Aura Sync
-AI Noise Cancelling Microphone
AI Suite 3:
– 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
– EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– Aura Creator
– Aura Sync
-AI Noise Cancelling Microphone
AI Suite 3:
– 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
– EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features
Aura Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
ASUS Q-Design
– ASUS Q-CODE
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
– SafeSlot
Rear audio USB Type-C® connector
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
ASUS Q-Design
– ASUS Q-CODE
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
– SafeSlot
Rear audio USB Type-C® connector
Puertos I/O Traseros
4 x USB 3.2 Gen 2 (1 x USB Type-C®+3 x Type-A)
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™1 for audio USB Type-C®)
1 x BIOS FlashBack™ Button(s)
1 x Intel® I225-V 2.5Gb Ethernet
3 x LED-illuminated audio jacks
1 x ASUS Wi-Fi Module
1 x DisplayPort
1 x HDMI
Internal I/O
1 x VRM_HS_FAN Header
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Aura RGB Strip Header(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Chassis Fan connector(s)
1 x Thermal sensor connector(s)
1 x System panel connector
1 x Speaker connector
1 x CPU Fan connector(s)
1 x AIO_PUMP connector
1 x Addressable Gen 2 header(s)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
Accessorios
1 x ROG audio USB Type-C® cable
1 x M.2 bracket
1 x Panel cable
2 x M.2 Screw Package
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
User´s manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Capacidad de gestión
WOL by PME, PXE
Sistema Operativo
Windows® 10 64-bit
Factor de forma
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Nota
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.
Sigue tu pedido
Ventas
Lunes a Viernes
San Pio X 2460, Of 1106, Providencia
