Model : PRIME A320M-K

CPU : AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list

Chipset : AMD A320

Memoria :
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC model) support varies by CPU.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Gráficos :
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support : HDMI/RGB ports
– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)

Slots de Expansión :
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 or dual x8)
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
2 x PCIe 2.0 x1

Almacenamiento :
AMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

LAN : Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio : Realtek® ALC887 8-Channel High Definition Audio CODEC

Puertos USB :
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD A320 chipset :
2 x USB 3.0 port(s) (2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Caracteristicas Especiales :
ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– Multi-language BIOS
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM

Operating System Support : Windows® 10

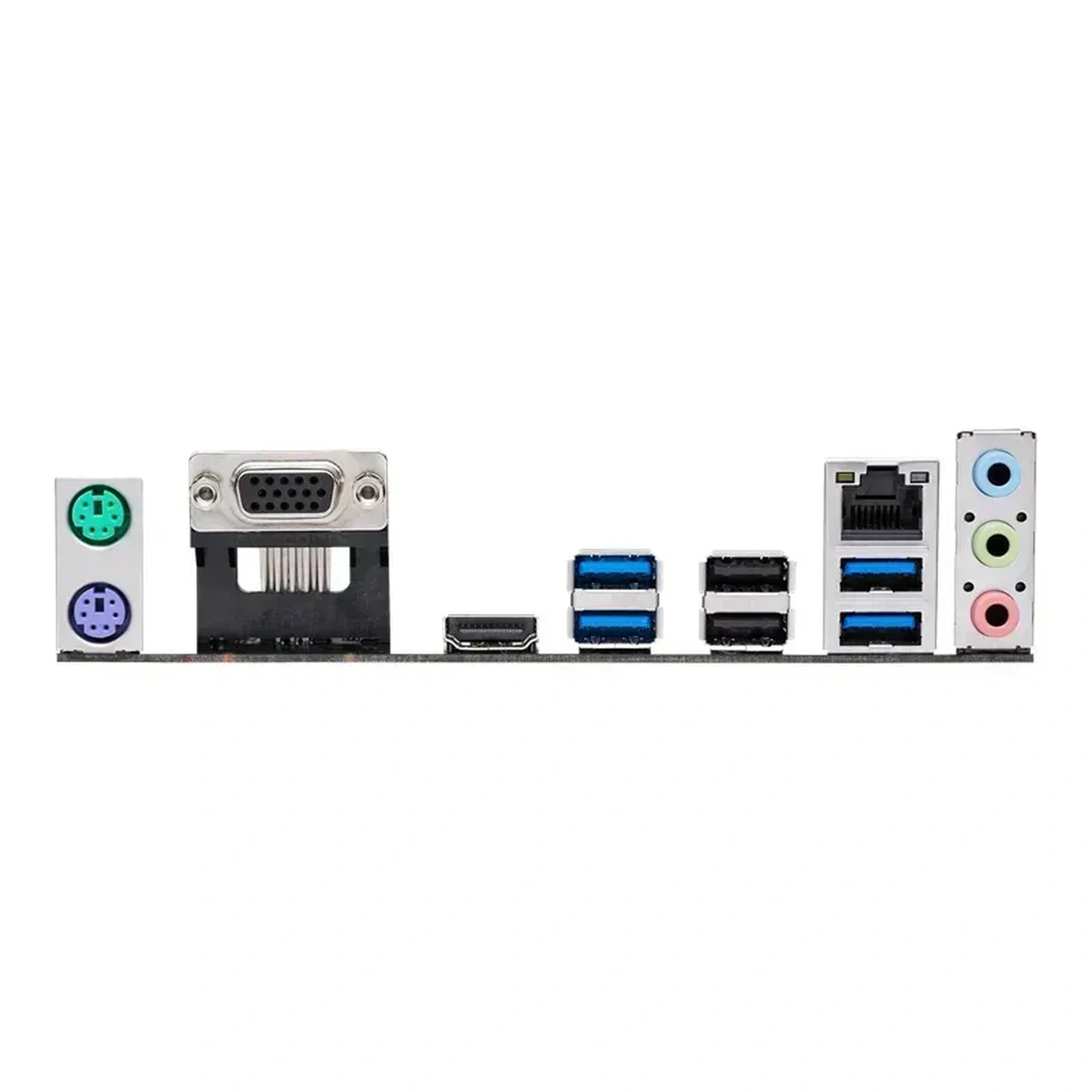

Puertos I/O Traseros :
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) ,
2 x USB 2.0
3 x Audio jack(s)

Internal I/O :
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

Accessorios
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Sistema Operativo : Windows® 10 64-bit

Factor de forma :
mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
