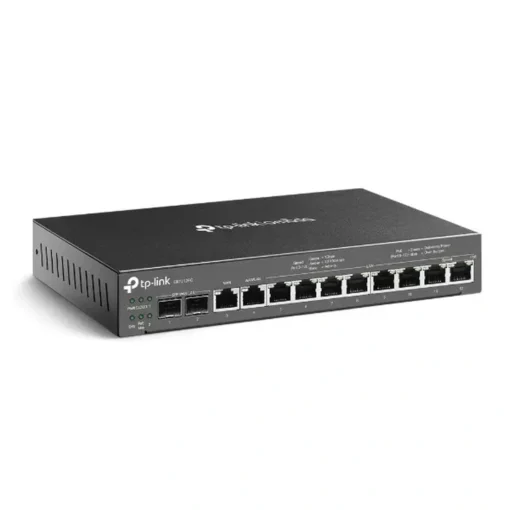

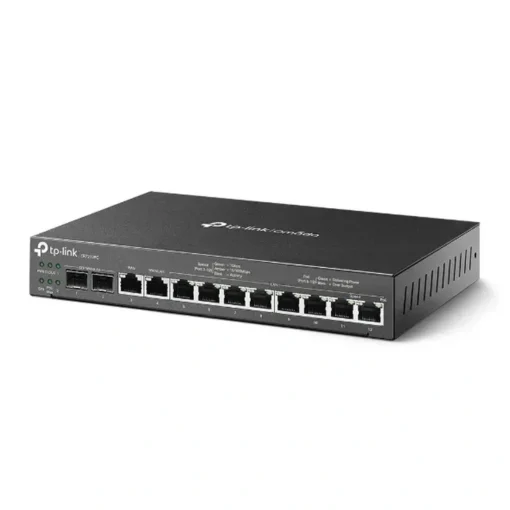

Router TP-Link ER7212PC, 8 puertos, 4 WAN, montaje en pared

Descripción General

Centralized Management

A Future-Proof, Versatile, and Compact Router with PoE+ Ports and Controller Capability

Omada 3-in-1 Gigabit VPN Router

ER7212PC

•


  3-in-1 Router

•


  Up to 4 WAN Ports

•


  Embedded Omada SDN Controller

•


  Easy Installation

•


  110W PoE Budget*

•


  High-Security VPN

•


  Easy Management

•


  Enhanced Security


3-in-1 Router, More Than A Router

The 3-in-1 ER7212PC presents a one-stop solution for home and small business networking.

With a single compact box, users can replace their router, hardware controller, and PoE+ switch setup. There is no need to manually configure various network devices one by one, you can perform unified deployment through ER7212PC. All you need is one device.

IP Camera

IP Phone

Access Point

Internet

• Integrated PoE+ Switch
  Dedicated 8× PoE+ Ports (110W total PoE power budget*) for PoE-supported devices such as access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
• Embedded Omada SDN Controller
  With the built-in Omada SDN controller, you don’t have to configure additional management devices with ER7212PC. You just need one device to manage and update other devices in bulk.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage

Equipped with multiple ports, ER7212PC satisfies various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

2× Gigabit SFP WAN/LAN Ports

1× Gigabit RJ45 WAN/LAN Port

1× Gigabit RJ45 WAN Port

8× Gigabit LAN Ports

Fanless

226 mm

131 mm

35mm

Easy Installation, Quiet Heat Dissipation

A clean, well-organized, and quiet network environment is at your fingertips.

•

  The compact and minimalist design makes it suitable for your configuration in various spaces, whether it’s the corner of office desks or the ceiling of a store.
•

  Fanless design offers noiseless heat dissipation to your shops or offices.

Embedded Omada SDN Controller

The built-in Omada SDN controller enables ER7212PC to manage and update your devices in bulk, with no need for individual and complex setup. Additionally, check the Omada app or web browser, ER7212PC allows you to remotely control connected devices, monitor the network, and view the network maintenance in real time.

Centralized Management for Access Points, Switches, and Routers

ER7212PC’s built-in Omada SDN controller provides 100% centralized management of access points, switches, and routers—all controlled from a single interface.

Learn more about Omada SDN >>

Omada Access Points

JetStream Switches

Omada Router

unified Managment Interface

Controllers

Cloud Access

Hybrid Cloud for  Maximum Convenience

Featuring hybrid cloud technology, ER7212PC allows you to remotely control the whole network anywhere, anytime with cloud access.

Omada Cloud Management Platform  >>

Cloud Service

Easy and Intelligent Network Monitoring

The easy-to-use dashboard makes it easy to see your real-time network status. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

•

  Check network usage and traffic distribution
•

  Receive network condition logs
•

  Receive abnormal event warnings and notifications
•

  Track key data for better business results

High-Security and High-Performance VPN

ER7212PC supports pass-through traffic and multiple VPN protocols, including OpenVPN, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.

Store

IPSec VPN

Warehouse

Omada Controller

Robust Security Features

Powerful Firewall

Advanced firewall policies

protect your network and data.

IP/MAC/URL/Keyword Filtering

Forcefully prevent viruses and attacks from intruders.

Convenient VLAN Support

Create virtual network segments for

enhanced security and simplified

network management.

IP-MAC Binding

Reserves static IP assignment for

clients to defend against ARP

attacks and spoofing.

DoS Defense

Automatically detects and blocks

Denial of Service (DoS) attacks such

as TCP/UDP/ICMP Flooding, Ping of

Death, and other related threats.

One-Click ALG Activation

One-Click ALG Activation for

applications such as FTP, H323, SIP,

IPSec, and PPTP.

Especificaciones

SEGURIDAD
Control de acceso	Source/Destination IP Based Access Control
Filtering	URL Filtering
ARP Inspection	–
Defensa de Ataque	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolos	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface	• 2 Gigabit SFP WAN/LAN ports • 1 Gigabit WAN port • 1 Gigabit LAN/WAN port • 8 Gigabit LAN ports
Medios de Red	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Cantidad de Ventiladores	Fanless
Botón	Reset Button
Fuente de Alimentación	53.5VDC/2.43A Adapter
PoE Budget	8 ports PoE+ output, 110 W PoE Budget
Flash	8Mb Nor + 4 GB EMMC
DRAM	1 GB DDR3
LED	PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensiones (W X D X H)	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protección	4 kV surge protection
Cercado	Steel
Montaje	Desktop/Wall-mount
Consumo Máximo de energía	• 133.2W with PoE Max • 13.88W without PoE

RENDIMIENTO
Sesiones Concurrentes	24,980
New Sessions /Second	1,900
NAT (Static IP)	935.5 Mbps / 942.1 Mbps
NAT(DHCP)	940.2 Mbps / 941.7 Mbps
NAT(PPPoE)	913.1 Mbps / 935.2 Mbps
NAT (L2TP)	545.0 Mbps / 912.7 Mbps
NAT (PPTP)	523.0 Mbps / 912.8 Mbps
Rendimiento VPN IPsec (AES256)	168.5 Mbps
Rendimiento VPN IPsec	AES256: 168.5 Mbps
OpenVPN	34 Mbps
L2TP VPN Throughput	• Unencrypted: 845.3 Mbps • Encrypted: 333.2 Mbps
PPTP VPN Throughput	• Unencrypted: 1012.6 Mbps • Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate	154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate	81,193 pps / 81,193 pps

FUNCIONES BÁSICAS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE • PPTP • L2TP
MAC Clone	Modify WAN MAC Address
DHCP	• DHCP Server • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	support
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy

FUNCIONES AVANZADAS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing
Bandwidth Control	IP/Port-based Bandwidth Control
Equilibrio de carga	• Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection
NAT	• Multi-Net NAT • Virtual Server • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Límite de sesión	IP-based Session Limit

VPN
SSL VPN	–
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • SHA1, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10) • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10) • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)§ • 16 OpenVPN Tunnels

AUTENTICACIÓN
Autenticación Web	• No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever • Facebook

ADMINISTRACIÓN
Omada App	Yes
Centralized Management	Yes.
Cloud Access	Yes
Servicio	Dynamic DNS (Dyndns, No-IP)
Mantenimiento	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Syslog Support
Zero-Touch Provisioning	–
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • Management up to 1 Router, 2 Switches and 10 EAPs

Otros
Certificacion	CE, FCC, RoHS
Contenidos del Paquete	• ER7212PC • Power Adapter • Power Cord • Quick Installation Guide
Requisitos del Sistema	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux
Ambiente	• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

For additional version information, please go to the support page.

Soporte

SEGURIDAD

Control de acceso : Source/Destination IP Based Access Control
Filtering : URL Filtering
ARP Inspection : –
Defensa de Ataque :
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

CARACTERÍSTICAS DE HARDWARE

Estándares y Protocolos :
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Interface

• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports

Medios de Red
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Cantidad de Ventiladores : Fanless
Botón : Reset Button
Fuente de Alimentación : 53.5VDC/2.43A Adapter
PoE Budget : 8 ports PoE+ output, 110 W PoE Budget
Flash : 8Mb Nor + 4 GB EMMC
DRAM : 1 GB DDR3
LED : PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensiones (W X D X H) : 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protección : 4 kV surge protection
Cercado : Steel
Montaje : Desktop/Wall-mount

Consumo Máximo de energía

• 133.2W with PoE Max
• 13.88W without PoE

RENDIMIENTO

Sesiones Concurrentes : 24,980
New Sessions /Second : 1,900
NAT (Static IP) : 935.5 Mbps / 942.1 Mbps
NAT(DHCP) : 940.2 Mbps / 941.7 Mbps
NAT(PPPoE) : 913.1 Mbps / 935.2 Mbps
NAT (L2TP) : 545.0 Mbps / 912.7 Mbps
NAT (PPTP) : 523.0 Mbps / 912.8 Mbps
Rendimiento VPN IPsec (AES256) : 168.5 Mbps
Rendimiento VPN IPsec AES256: 168.5 Mbps
OpenVPN : 34 Mbps

L2TP VPN Throughput
• Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps

PPTP VPN Throughput
• Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate : 154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate : 81,193 pps / 81,193 pps

FUNCIONES BÁSICAS

WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP

MAC Clone : Modify WAN MAC Address

DHCP
• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6 : support
VLAN : 802.1Q VLAN
IPTV : IGMP v2/v3 Proxy

FUNCIONES AVANZADAS

ACL : IP/Port/Protocol/Domain Name Filtering

Advanced Routing
• Static Routing
• Policy Routing

Bandwidth Control : IP/Port-based Bandwidth Control

Equilibrio de carga
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection

NAT
• Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Límite de sesión : IP-based Session Limit

VPN

SSL VPN : –

IPsec VPN
• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption

L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec

OpenVPN
• OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels

AUTENTICACIÓN

Autenticación Web
• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook

ADMINISTRACIÓN

Omada App : Si
Centralized Management : Si
Cloud Access : Si
Servicio : Dynamic DNS (Dyndns, No-IP)

Mantenimiento

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support

Zero-Touch Provisioning : –

Management Features

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management up to 1 Router, 2 Switches and 10 EAPs

OTROS

Certificacion : CE, FCC, RoHS

Contenidos del Paquete
• ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide

Requisitos del Sistema
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux

Ambiente
• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
