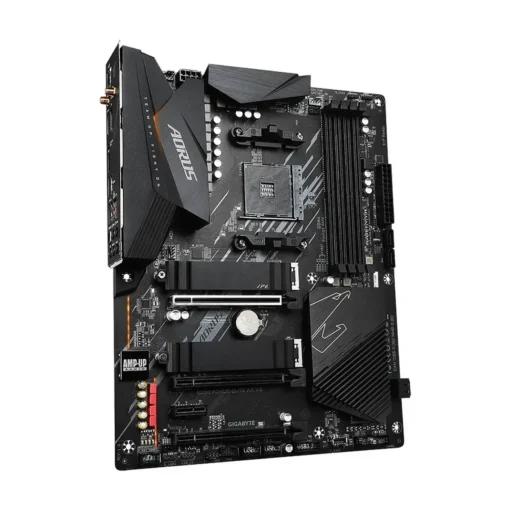

Placa Madre B550 AORUS ELITE AX V2 (WiFi 6) Socket AMD AM4
SKU: 22411 | NÚMERO DE PARTE: B550 AORUS ELITE AX V2 | CONDICIÓN: NUEVO
Retiro en tienda
Si compras ahora, retira a partir de mañana por la tarde
Deberás esperar confirmación por correo
Si compras ahora, retira a partir de mañana por la tarde
Deberás esperar confirmación por correo
Despacho a domicilio Recibirás el Jueves 28 de Noviembre si el destino es Santiago, Valparaíso o Concepción(Ver otros destinos)
Con Transferencia electrónica
$220.470
Con Tarjetas de Crédito/Débito
2 disponibles
2 Unidades disponibles
Revisa cuando podrías retirar el producto en la seccion "RETIRO EN TIENDA", ya que no está disponible para retiro inmediato
Placa Madre B550 AORUS ELITE AX V2 (WiFi 6) Socket AMD AM4
CARACTERÍSTICAS
Admite procesadores AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series y Ryzen™ 3000 Series
DDR4 sin búfer ECC/no ECC de dos canales, 4 DIMM
Diseño de energía gemelo digital de 12+2 fases con 50A DrMOS
Diseño térmico avanzado con disipadores de calor de superficie ampliada
Ranura Ultra Durable™ PCIe 4.0 x16
Dual NVMe PCIe 4.0/3.0 x4 M.2 ultrarrápido con protectores térmicos duales
Intel ® WiFi 6 802.11ax 2T2R y BT5 integrado con antena AORUS
Audio AMP-UP con condensadores ALC1200 y WIMA
LAN ultrarrápida de 2,5 GbE con gestión de ancho de banda
USB 3.2 Gen1 Type-C™ frontal y DisplayPort y HDMI para múltiples pantallas
RGB FUSION 2.0 admite tiras de LED RGB y LED direccionables
Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
Q-Flash Plus Actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
IO Shield preinstalado para una instalación fácil y rápida
DDR4 sin búfer ECC/no ECC de dos canales, 4 DIMM
Diseño de energía gemelo digital de 12+2 fases con 50A DrMOS
Diseño térmico avanzado con disipadores de calor de superficie ampliada
Ranura Ultra Durable™ PCIe 4.0 x16
Dual NVMe PCIe 4.0/3.0 x4 M.2 ultrarrápido con protectores térmicos duales
Intel ® WiFi 6 802.11ax 2T2R y BT5 integrado con antena AORUS
Audio AMP-UP con condensadores ALC1200 y WIMA
LAN ultrarrápida de 2,5 GbE con gestión de ancho de banda
USB 3.2 Gen1 Type-C™ frontal y DisplayPort y HDMI para múltiples pantallas
RGB FUSION 2.0 admite tiras de LED RGB y LED direccionables
Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
Q-Flash Plus Actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
IO Shield preinstalado para una instalación fácil y rápida
DESIGN CONCEPT
Dominant in Darkness
In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with
minimal
visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for
the
kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS
Core Lighting illuminates the vast AORUS ecosystem.
minimal
visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for
the
kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS
Core Lighting illuminates the vast AORUS ecosystem.

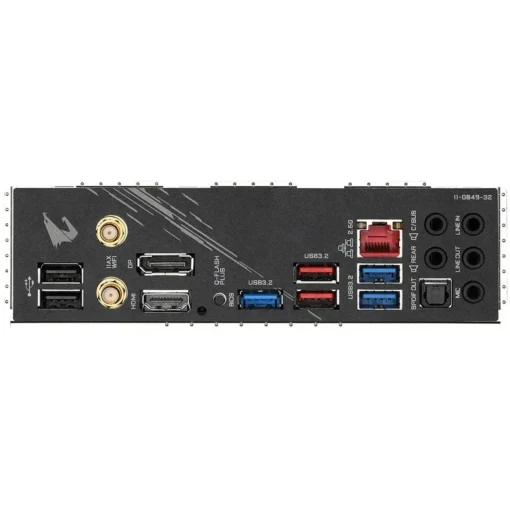

1 Intel ® WiFi 6 802.11ax & BT5
2 DisplayPort
3 HDMI
4 Q-Flash Plus Button
5 2.5 GbE LAN
6 Advanced Thermal Design
- Enlarged Surface Heatsinks
- 5 W/mK Thermal Conductivity Pad
- Pre-installed I/O Shield
7
Audio Solutions
- ALC1200 Audio
- Nichicon Fine Gold Audio Capacitors
- Audiophile Grade WIMA Capacitors
8
RGB FUSION 2.0
- Addressable LED Header*2
- RGB LED Header*3
9
12+2 Phases Digital Twin Power Design with DrMOS
- 50A DrMOS
- Premium Choke and Capacitor
- 2X Copper PCB
10
Dual Channel DDR4, 4 DIMMs
11
Supports 3rd Gen AMD Ryzen™ Processors
12
Solid Pin Power Connectors
- 24 Pin ATX Power Connector
- 8 Pin CPU Power Connector
13
Dual M.2 Connectors
1-
22110 M.2 with Thermal Guard
2-
22110 M.2 with Thermal Guard
1-
22110 M.2 with Thermal Guard
- PCIe 4.0 M.2 Connector
- NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
2-
22110 M.2 with Thermal Guard
- NVMe PCIe 3.0 x4 and SATA Mode (from Chipset)
14
Ultra Durable PCIe Armor
- PCIe 4.0 Slot
- Running 1 x16
15
Front USB 3.2 Gen1 Type-C™
16
Smart Fan 5 + FAN STOP
- 5* Fan / Water Pump Connectors
- 6* Temperature Sensors
AMD StoreMI Technology
GIGABYTE B550 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI
accelerates traditional
storage devices to reduce boot times and enhance the overall user experience. This easy-to-use
utility combines the
speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of
the device to match
that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a
performance driven
system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users’ computing behaviors
Ultimate power design
To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise and never stop to achieve higher.
12*+2 Phases
Digital Twin Power Design
2X Copper PCB
12*+2 Phases Digital Twin Power Design
- Digital PWM Controller delivers appropriate voltage to the CPU
- With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total
- All-solid capacitors to improve Transient response and minimize oscillation
- 24pin+8pin Solid Pin CPU Power Connectors
B550 AORUS ELITE AX V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.
*6+6 Phases parallel power design
1. Intersil Digital PWM Controller
2. 12+2 Phases Digital Twin Power Design with 50A DrMOS
3. All-Solid Capacitors
4. 8 Solid Pin CPU Power Connector
GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths
between
components to handle greater than
normal power loads and to remove heat from the critical CPU power delivery area.
This is
essential to ensure the motherboard is able to handle the increased power
loading that
is
necessary when overclocking.
between
components to handle greater than
normal power loads and to remove heat from the critical CPU power delivery area.
This is
essential to ensure the motherboard is able to handle the increased power
loading that
is
necessary when overclocking.
UNPARALLELED PERFORMANCE
GIGABYTE realize that customer won’t stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.
Memory Layout
PCIe 4.0
Hardware Design
2X M.2
PCIe 4.0/3.0
Memory Layout – Daisy Chain Design
With the optimized daisy-chain routing, the B550 motherboard provides a proven speed of DDR4-4000MHz and beyond with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience.
* Performance may vary in circumstances. Please refer to the QVL list for detail support information.
Single 32GB Support
With populated 2 DIMMs per channel on GIGABYTE B550 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing.
1.
PCIe 4.0 Slot
PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
2.
M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with Lower impedance.
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration
M.2 + M.2
Extreme sequential
Read 6560 MB/s
and
Write 6669 MB/s
speed
Read 6560 MB/s
and
Write 6669 MB/s
speed
Dual NVMe M.2 PCIe SSDs in RAID 0 Support
Performance with PCIe 4.0 x4 + PCIe 3.0 x4
NVMe PCIe SSDs
NVMe PCIe SSDs
B550 AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS’ unique design can be configured in RAID for record speeds of up to 6560 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
Advanced Thermal Solution
Unthrottled performance is guaranteed by the advanced thermal solution which including Enlarged Heatsinks, High Quality Thermal Conductivity Pads and Thermal Guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts, overclockers and professional gamers.
Thermal Solution
Thermal Guard
Smart Fan 5
1.
Enlarged Surface Heatsinks
Enlarged surface heatsinks which increasing the surface area to improve thermal efficiency with better airflow and heat exchange.
2.
5 W/mK Thermal Conductivity Pad
By using 5 W/mK high thermal conductivity pads, it can transfer 2.7x more heat as compared to traditional thermal pads in same time.
3.
M.2 Thermal Guard
Built-in M.2 thermal guard heatsink helps the high-speed, large capacity of PCIe 4.0/3.0 SSDs to prevent overheat throttling and performance bottlenecks.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal
Guard prevents throttling
and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Guard prevents throttling
and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can
maintain its
performance while staying
cool. Smart Fan 5 allows users to interchange their fan headers
to
reflect different thermal
sensors at different locations on the motherboard. Not only
that, with
Smart Fan 5 more hybrid
fan headers that support both PWM and Voltage mode fans have
been
introduced to make the motherboard
more liquid cooling friendly.
maintain its
performance while staying
cool. Smart Fan 5 allows users to interchange their fan headers
to
reflect different thermal
sensors at different locations on the motherboard. Not only
that, with
Smart Fan 5 more hybrid
fan headers that support both PWM and Voltage mode fans have
been
introduced to make the motherboard
more liquid cooling friendly.
Fan /
Water Pump Connectors
Internal
Temperature Sensors
Temperature Sensors
Hybrid Fan Headers
■ 5 Fan / Water Pump Connectors
■ 6 Temperature Sensors
■ All Hybrid Fan Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
* Different models have a different number of fan pin headers and
temperature sensors. Smart Fan 5 function may vary by model.
temperature sensors. Smart Fan 5 function may vary by model.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5
receives
up-to-the-second information
on flow-rate and water-temperature through the Hybrid Fan Pin
Headers, giving
you absolute mastery over your PC.
receives
up-to-the-second information
on flow-rate and water-temperature through the Hybrid Fan Pin
Headers, giving
you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of
cooling
device whether it be fan
or pump with different PWM or Voltage mode.
cooling
device whether it be fan
or pump with different PWM or Voltage mode.
Achieve fan silence. With Fan Stop, map any
fan to
stop completely when temperatures
drop below a specified threshold. Which fan stops, based on
readings
from which sensor, and at
what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.
2.5GbE LAN
WIFI 6 802.11ax
AORUS Antenna
Front USB Type-C™
HDMI
2.5GbE LAN Onboard
2X Faster than ever
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds as compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig (10/100/1000/2500Mbps)of RJ-45 ethernet.
New Introduce Intel
®
WiFi 6 802.11ax + BT 5 Module
®
WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance,
provides
smooth video streaming, better
gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover,
Bluetooth 5
provides 4X range over BT
4.2 and with faster transmission.
provides
smooth video streaming, better
gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover,
Bluetooth 5
provides 4X range over BT
4.2 and with faster transmission.
Benefit of WiFi 6:
- 5.5X throughput than 802.11ac 1×1*
-
4X better network capacity, no traffic jams especially in those dense area
with lots
of devices - Network efficiency increase for better user experience
AORUS Antenna Supports Dual Band with Better WIFI Signal
-
All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz.
better signal strength compared to traditional antenna design
- AORUS Antenna with smart antenna function for the best WIFI signal transmitting
-
Multiple angle tilt and magnetic base for the best signal strength direction and
location
USB Type-C™ Front Panel Connector
Equipped with next generation connectivity, AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 device or charging your mobile device.
HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.
HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb
audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most
demanding audiophiles.
audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most
demanding audiophiles.
High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
Audio Noise Guard
AORUS motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.
Definitive Aesthetics
B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS
devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.
devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.
RGB FUSION 2.0
RGB FUSION Software
RGB FUSION APP
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent
their
lifestyle. With full RGB
support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs
which surround
the motherboard.
their
lifestyle. With full RGB
support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs
which surround
the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may
vary by model.
vary by model.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides
you a better
solution for customizing the lighting effects across all supported
devices. From
motherboards, graphics cards to the peripheral products, you can
personalize your gaming
rig with your own style and show off your build by sharing the profiles.
In addition,
the new gaming mode makes the lighting effects interactive with selected
games to bring
you the most immersive gaming experience.
you a better
solution for customizing the lighting effects across all supported
devices. From
motherboards, graphics cards to the peripheral products, you can
personalize your gaming
rig with your own style and show off your build by sharing the profiles.
In addition,
the new gaming mode makes the lighting effects interactive with selected
games to bring
you the most immersive gaming experience.
Sync with one click
Individual control as you wish
GIGABYTE RGB Fusion APP
Don’t just make your PC shine, make it a work of art that friends will envy. With the
GIGABYTE RGB Fusion
mobile app users can watch as they control the lighting within their gaming PC. This
gives users
ease of access as they try and adjust colors and speeds for different modes, all
this
can be achieved
away from the keyboard and monitor of their PC.
GIGABYTE RGB Fusion
mobile app users can watch as they control the lighting within their gaming PC. This
gives users
ease of access as they try and adjust colors and speeds for different modes, all
this
can be achieved
away from the keyboard and monitor of their PC.
Ultra Durable
GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the
best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.
best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.
PCIE Armor
Solid Pin
Q-Flash Plus
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from
GIGABYTE
reinforces
the PCIe connectors to provide the extra
strength required to support heavy graphics cards.
GIGABYTE
reinforces
the PCIe connectors to provide the extra
strength required to support heavy graphics cards.
Solid Pin Power Connectors
B550 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power
connectors to offer a stable power supply
during CPU overloading.
connectors to offer a stable power supply
during CPU overloading.
Solid Pin Power connector
advantages
advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and
graphics
card nor
enter the BIOS menu to flash
the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on
the USB
flash
drive, then press the
dedicated Q-Flash Plus button and you’re good to go!
graphics
card nor
enter the BIOS menu to flash
the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on
the USB
flash
drive, then press the
dedicated Q-Flash Plus button and you’re good to go!
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software
to help users to control every aspect of motherboard.
to help users to control every aspect of motherboard.
BIOS
APP Center
Easy Tune
@BIOS
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU
clock, Memory, Storage, Fan.
clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings
modification.
modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you
can choose any utility you want to install from APP CENTER and keep updated with the
latest utilities and drivers version.
can choose any utility you want to install from APP CENTER and keep updated with the
latest utilities and drivers version.
EasyTune™
GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to
fine-tune their system settings or adjust
system and memory clocks and voltages in a Windows environment. With Smart Quick
Boost, one click
is all it takes to automatically overclock your system, giving an added performance
boost when
you need it the most.
fine-tune their system settings or adjust
system and memory clocks and voltages in a Windows environment. With Smart Quick
Boost, one click
is all it takes to automatically overclock your system, giving an added performance
boost when
you need it the most.
@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical
user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your
BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS
from an image and backup your BIOS to an image.
user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your
BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS
from an image and backup your BIOS to an image.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to
your current system status. Monitor components
such as the clocks and processor, set your preferred fan speed profile, create
alerts when temperatures
get too high or record your system’s behavior; these are the possibilities of the
System Information
Viewer.
your current system status. Monitor components
such as the clocks and processor, set your preferred fan speed profile, create
alerts when temperatures
get too high or record your system’s behavior; these are the possibilities of the
System Information
Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game
Anytime, Anywhere
Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster +
Broadcaster! Fully optimized social
media integration is ready for real-time chats—keeping you notified yet focused
in
the game. It takes
just one click to stream your gameplay to Twitch. Host your game like a pro!
Gamecaster +
Broadcaster! Fully optimized social
media integration is ready for real-time chats—keeping you notified yet focused
in
the game. It takes
just one click to stream your gameplay to Twitch. Host your game like a pro!
* Free 14 days XSplit Gamecaster + Broadcaster Premium License.
Procesador
- AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
(Please refer “CPU Support List” for more information.)
Chipset
- AMD B550
Memoria
1.- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2.- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3.- Dual channel memory architecture
4.- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
5.- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
2.- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3.- Dual channel memory architecture
4.- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
5.- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Gráficos Integrados
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1.- Realtek® ALC1200 codec
2.- High Definition Audio
3.- 2/4/5.1/7.1-channel
4.- Support for S/PDIF Out
2.- High Definition Audio
3.- 2/4/5.1/7.1-channel
4.- Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel® Wi-Fi 6 AX200
1.- WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
2.- BLUETOOTH 5
3.- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
1.- WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
2.- BLUETOOTH 5
3.- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Puertos de Expansión
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU’s specification.
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU’s specification.
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Interfaz de Almacenamiento
1.- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
2.- 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
3.- 4 x SATA 6Gb/s connectors, integrated in the
– AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
2.- 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
3.- 4 x SATA 6Gb/s connectors, integrated in the
Chipset:
- Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 1 port on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 1 port on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Conectores del Panel Trasero
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Controlador de E/S
iTE® I/O Controller Chip
Monitorización H/W
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas
1.- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.- Support for Q-Flash Plus
3.-Support for Q-Flash
4.-Support for Xpress Install
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.- Support for Q-Flash Plus
3.-Support for Q-Flash
4.-Support for Xpress Install
Software Incluido
Norton® Internet Security (OEM version)
Realtek® 8125 Gaming LAN Bandwidth Control Utility
Realtek® 8125 Gaming LAN Bandwidth Control Utility
Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Support for Windows 10 64-bit
Diseño
ATX Form Factor; 30.5cm x 24.4cm
Otras Descripciones
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Contacto y Ventas
