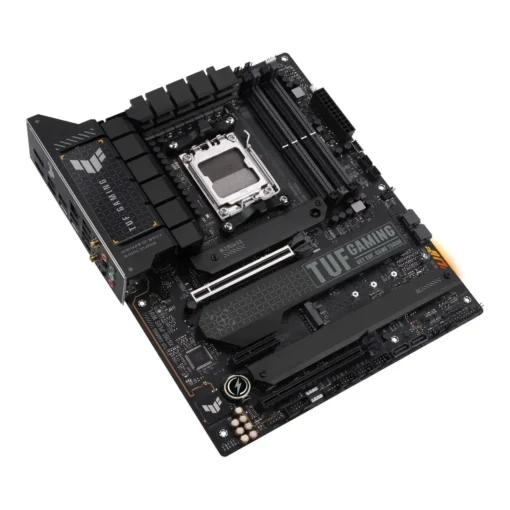

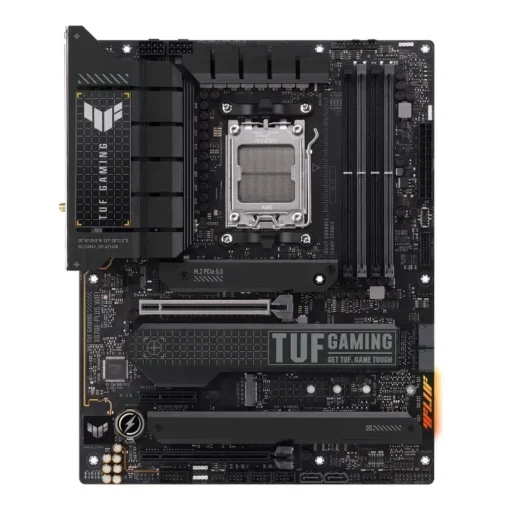

Placa Madre ATX ASUS TUF GAMING X670E-PLUS WIFI, Socket AMD AM5, DDR5, WiFi 6E

General Information

•
  Part Number:

  TUF GAMING X670E-PLUS WIFI
•
  Manufacturer:

  ASUS
•
  Series:

  TUF Gaming

CPU & Socket

•
  CPU Socket:

  AMD Socket AM5
•
  Supported CPU:

  AMD Ryzen™ 7000 Series Processors

Chipset

•
  Chipset:

  AMD X670E

Memory

•
  Memory Slots:

  4 x DIMM
•
  Memory Type:

  DDR5
•
  Maximum Memory Capacity:

  128 GB
•
  Memory Speed:

  Supports up to DDR5 6400+(OC)

Graphics

•
  Integrated Graphics:

  Depends on CPU
•
  Graphics Interface:

  PCIe 5.0 x16 slot

Expansion Slots

•
  PCIe Slots:

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x1 slots

Storage

•
  M.2 Slots:

• 2 x M.2 slots (Key M), type 2242/2260/2280 – supports PCIe 5.0 x4 and SATA modes
• 2 x M.2 slots (Key M), type 2242/2260/2280 – supports PCIe 4.0 x4 and SATA modes
•
  SATA Ports:

  4 x SATA 6Gb/s ports

Networking

•
  Ethernet:

  Realtek 2.5Gb Ethernet
•
  Wi-Fi:

  Wi-Fi 6E
•
  Bluetooth:

  Bluetooth 5.2

Audio

•
  Audio Chipset:

  Realtek S1220A
•
  Audio Channels:

  7.1 Surround Sound High Definition Audio

Rear I/O Ports

•
  USB Ports:

• 1 x USB 3.2 Gen 2×2 Type-C
• 4 x USB 3.2 Gen 2 Type-A
• 4 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0
•
  Video Ports:

• 1 x HDMI
• 1 x DisplayPort
•
  LAN Port:

  1 x RJ-45
•
  Audio Ports:

• 1 x Optical S/PDIF Out
• 5 x Audio Jacks

Internal I/O Headers

•
  USB Headers:

• 1 x USB 3.2 Gen 2 Type-C
• 1 x USB 3.2 Gen 1 (supports 2 ports)
• 2 x USB 2.0 (supports 4 ports)
•
  Fan Headers:

  6 x 4-pin fan headers
•
  RGB Headers:

  3 x RGB headers, 1 x Addressable Gen 2 RGB header

Form Factor

•
  Form Factor:

  ATX
•
  Dimensions:

  30.5 cm x 24.4 cm

Power

•
  Power Connectors:

• 1 x 24-pin EATX Power Connector
• 1 x 8-pin ATX 12V Power Connector
• 1 x 4-pin ATX 12V Power Connector

Other Features

•
  BIOS:

  256 Mb Flash ROM, UEFI AMI BIOS
•
  Special Features:

• ASUS TUF Protection
• Military-grade TUF Components
• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LEDs for easy troubleshooting)
• AI Overclocking
• AI Cooling II
• Armoury Crate

Package Contents

•
  Included Accessories:

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA 6Gb/s cables
• 1 x M.2 Screw Package
• 1 x Support DVD
• 1 x TUF Gaming Sticker
• 1 x Wi-Fi Antenna
