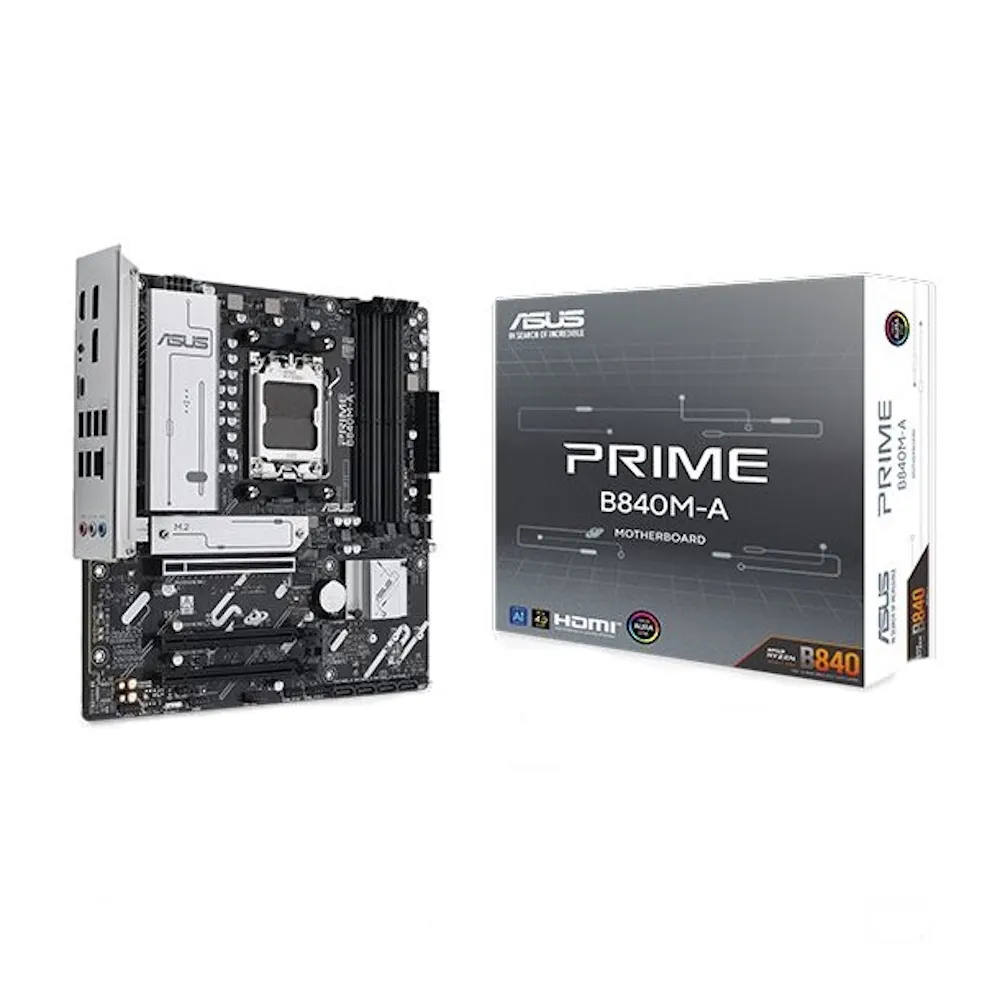

Placa Madre Asus Prime B840M-A 90MB1J10-M0EAY0

Las placas base ASUS Prime están diseñadas por expertos para aprovechar al máximo el potencial de los procesadores AMD Ryzen™ serie 9000.
La placa base PRIME B840M-A ofrece a usuarios y ensambladores de PC DIY diversas optimizaciones de rendimiento mediante funciones intuitivas de software y firmware.
Está diseñada para ser compatible con PC con IA avanzada, ofreciendo la potencia y la conectividad necesarias para aplicaciones de IA exigentes.

Rendimiento mejorado de memoria y almacenamiento
Rendimiento DDR5 mejorado
Las completas opciones de optimización de memoria son la piedra angular de las placas base PRIME. La PRIME B840M-A maximiza el potencial de tus módulos DDR5, desde kits de gama básica hasta kits de velocidad extrema.²
Para módulos de gama básica sin compatibilidad con EXPO™, ASUS Enhanced Memory Profile (AEMP) detecta automáticamente los chips de memoria y proporciona perfiles optimizados para un rendimiento superior.
Para quienes buscan superar las velocidades de la DDR5 de serie, la PRIME B840M-A ofrece una amplia compatibilidad con AMD Extended Profiles for Overclocking (EXPO™) y una amplia gama de configuraciones UEFI para optimizar aún más el rendimiento.³

Tres ranuras M.2 (hasta 64 Gbps)
PRIME B840M-A ofrece un total de tres ranuras M.2, incluyendo dos que admiten velocidades de transferencia de datos de hasta 64 Gbps a través de PCIe 4.0 y una compatible con PCIe 3.0. Esto permite un arranque y una carga de aplicaciones más rápidos con unidades de sistema operativo o de aplicaciones.

Model : PRIME B840M-A
News & Updates : Please visit our GLOBAL website to check and download the latest updates.
CPU : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset : AMD B840 Chipset

Memory :
4 x DIMM slots, max. 256GB, DDR5
Supports up to 7600+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics :
2 x DisplayPort
1 x HDMI™ port
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B840 Chipset
2 x PCIe 3.0 x16 slots (support x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage :
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B840 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet :
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

USB :
Rear USB (Total 7 ports)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A

Audio :
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports :
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors :
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB :
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

Special Features :
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage protection
– SafeSlot Core+
– Stainless-steel back I/O
ASUS Q-Design
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Pre-mounted I/O shield
Aura Sync
– Addressable Gen 2 headers

Software Features :
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS DriverHub
TurboV Core
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey

BIOS :
256 Mb Flash ROM, UEFI AMI BIOS

Manageability : WOL by PME, PXE

Accessories :
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Operating System :
Windows 11, Windows 10 64-bit
Form Factor :
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
