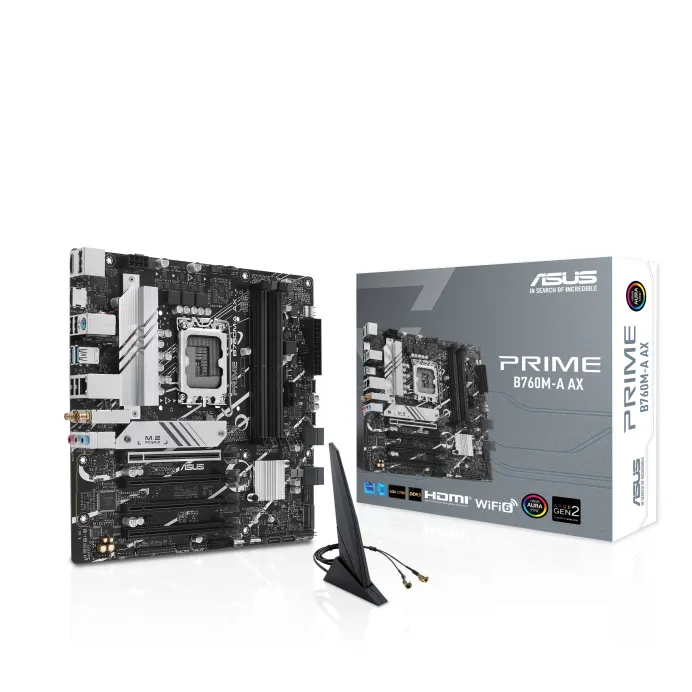

Placa Madre Asus Prime B760M-A Ax6 Ii 90MB1JH0-M0EAY0

Motherboard Intel® B760 (LGA 1700) mATX, PCIe 4.0, DDR5, dos puertos M.2, Realtek 2,5 Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI dualTM, SATA 6 Gbps, USB 3.2 Gen 2 trasero, USB 3.2 Gen 1 Type-C® frontal, Aura Sync
Socket Intel® LGA 1700 : Listo para procesadores Intel® de 13a y de 12a generación.

Conectividad ultrarrápida : PCIe 4.0, dos puertos M.2, Realtek 2.5 Gb Ethernet, Wi-Fi 6, USB 3.2 Gen 2 trasero, USB 3.2 Gen 1 Type-C® frontal.

Enfriamiento integral : Disipador VRM, disipador M.2, disipador PCH, puertos de ventilador híbridos y Fan Xpert 2+.

Tecnología de memoria exclusiva : ASUS Enhanced Memory Profile II y ASUS OptiMem II.
Iluminación RGB Aura Sync: Puertos direccionables Gen 2 integrados y puerto Aura RGB para tiras LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync.
Preparado para el nivel II de la CEC

B760M-A AX
Las motherboards de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel de 13a y 12a generación. Con un diseño de energía robusto, soluciones de refrigeración integrales y opciones de ajuste inteligentes, Prime H610 ofrece a los usuarios y a los ensambladores de PC una gama de opciones de ajuste del rendimiento a través de funciones intuitivas de software y firmware.

FLEXIBILIDAD
Los controles completos forman la base de la serie ASUS Prime. La motherboard Prime B760 incluye herramientas flexibles para ajustar cada aspecto de tu sistema, permitiendo ajustes de rendimiento para adaptarse perfectamente a tu forma de trabajar para maximizar la productividad.

Control inteligente
ASUS Intelligent Control hace que tu PC sea inteligente. Además de encargarse de ajustes complejos y optimizar dinámicamente aspectos esenciales de tu sistema, ofrece opciones inteligentemente simplificadas para los recién llegados al ensamble de PC, así como funciones más completas para los veteranos experimentados.

UEFI BIOS
El renombrado ASUS UEFI BIOS proporciona todo lo que necesitas para configurar, modificar y ajustar tu sistema. Ofrece opciones inteligentemente simplificadas para principiantes en el ensambe de PC, así como funciones integrales para veteranos experimentados.

Ajuste avanzado para usuarios serios
Un modo avanzado intuitivo ofrecido a través de UEFI te permite tomar el control total. Una función de búsqueda incorporada facilita la búsqueda de opciones, y varias funciones avanzadas te permiten realizar ajustes matizados de manera inteligente para que puedas ajustar el rendimiento de la manera que desees.

Model : PRIME B760M-A AX
CPU :
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset : Intel® B760 Chipset

Memory
4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics
1 x DisplayPort
2 x HDMITM ports
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
* Supports 4K@60Hz as specified in HDMTM 2.1.

Expansion Slots
Intel® CoreTM Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
*SATA E1-2 ports do not support SATA RAID

Ethernet
1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connectors (support USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header

Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– Digi+ VRM
– PC Cleaner
ASUS CPU-Z
Norton Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
