MPN: DS-2CD1123G0E-I

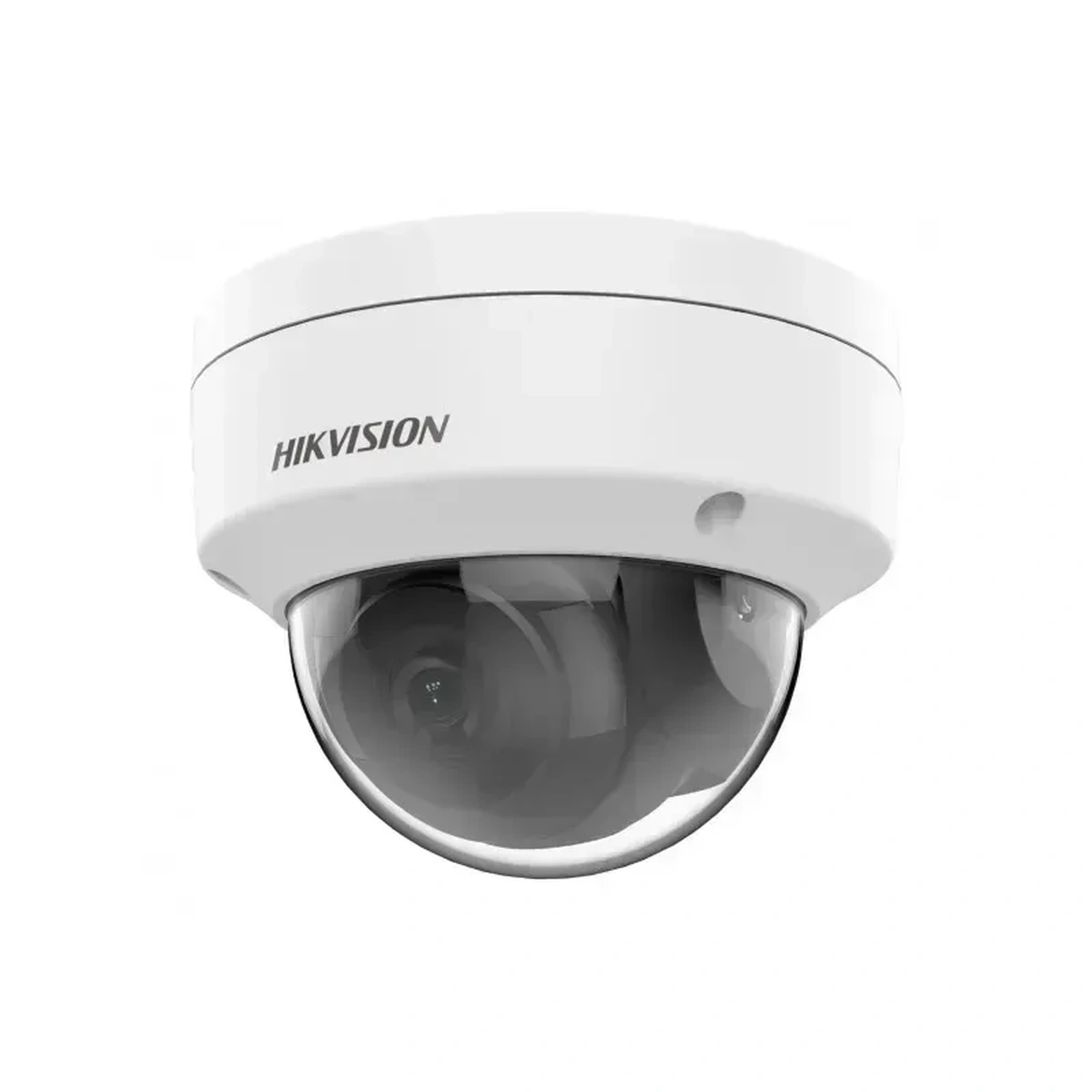

Hikvision Cámara Domo De Red (2.8Mm, 2Mp, Exir 2.0, Ir, H.265+, Ip67, Ik10
Hikvision DS-2CD1123G0-I
Características Claves
- Imágenes de alta calidad con resolución de 2 MP
- Tecnología de compresión eficiente H.265+
- Imágenes claras contra la luz de fondo fuerte gracias a la tecnología DWDR
- Resistente al agua y al polvo (IP67) y resistente al vandalismo (IK10)
- EXIR 2.0: tecnología infrarroja avanzada con largo alcance IR
Especificaciones
Cámara
|
Sensor De Imagen
|
1/2.7” Progressive Scan CMOS
|
|
Max. Resolución
|
1920 × 1080
|
|
Iluminación Mínima
|
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
|
|
Tiempo De Obturación
|
1/3 s to 1/100, 000 s
|
|
Día Y Noche
|
IR cut filter
|
|
Ajuste De Ángulo
|
Pan: 0° to 355°, tilt: 0° to 75°
|
Lente
|
Focal Length & FOV
|
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
|
|
Montura Del Lente
|
M12
|
|
Enfoque
|
Fixed
|
|
Apertura
|
F2.0
|
Iluminador
|
Tipo De Luz Suplementaria
|
IR
|
|
Rango De Luz Suplementaria
|
Hasta 30 m
|
|
IR Wavelength
|
850 nm
|
Vídeo
|
Main Stream
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
|
|
Sub-Stream
|
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
|
|
Compresión De Video
|
Main Stream: H.265/H.264/H.264+/H.265+
Sub-Stream: H.265/H.264/MJPEG
|
|
Vídeo Bitrate
|
32 Kbps to 8 Mbps
|
|
Tipo H.264
|
Baseline Profile/Main Profile/High Profile
|
|
Tipo H.265
|
Main Profile
|
|
Región De Interés (ROI)
|
1 fixed region for main stream
|
Red
|
Protocolos
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
|
|
Vista En Vivo Simultánea
|
Hasta 6 canales
|
|
API
|
Open Network Video Interface, ISAPI
|
|
Usuario/Operador
|
Hasta 32 usuarios 3 levels: administrator, operator and user
|
|
Cliente
|
iVMS-4200, Hik-Connect
|
|
Navegador Web
|
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
|
Imagen
|
Configuración De Imagen
|
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
|
|
Interruptor Día/Noche
|
Day, Night, Auto, Schedule
|
|
Wide Dynamic Range (WDR)
|
Digital WDR
|
|
Mejora De La Imagen
|
BLC, 3D DNR
|
Interfaz
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
Evento
|
Evento Básico
|
Motion detection, video tampering alarm, exception
|
|
Linkage
|
Upload to FTP, notify surveillance center, send email
|
General
|
Alimentación
|
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
|
|
Material
|
Metal & Plastic
|
|
Dimensión
|
Ø110 mm × 82.4 mm (Ø4.4” × 3.2”)
|
|
Dimensión Del Paquete
|
134 mm × 134 mm × 108 mm (5.3” × 5.3” × 4.3”)
|
|
Peso
|
Approx. 410 g (0.9 lb.)
|
|
Con Peso Del Paquete
|
Approx. 610 g (1.3 lb.)
|
|
Condiciones De Almacenaje
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
|
|
Condiciones De Inicio Y Funcionamiento
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
|
|
Idioma
|
English, Ukrainian
|
|
Función General
|
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
|
Certificaciones
| EMC |
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
|
| Seguridad |
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
|
| Ambiente |
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
|
| Protección |
IP67 (IEC 60529-2013)
IK10 (IEC 62262:2002)
|
