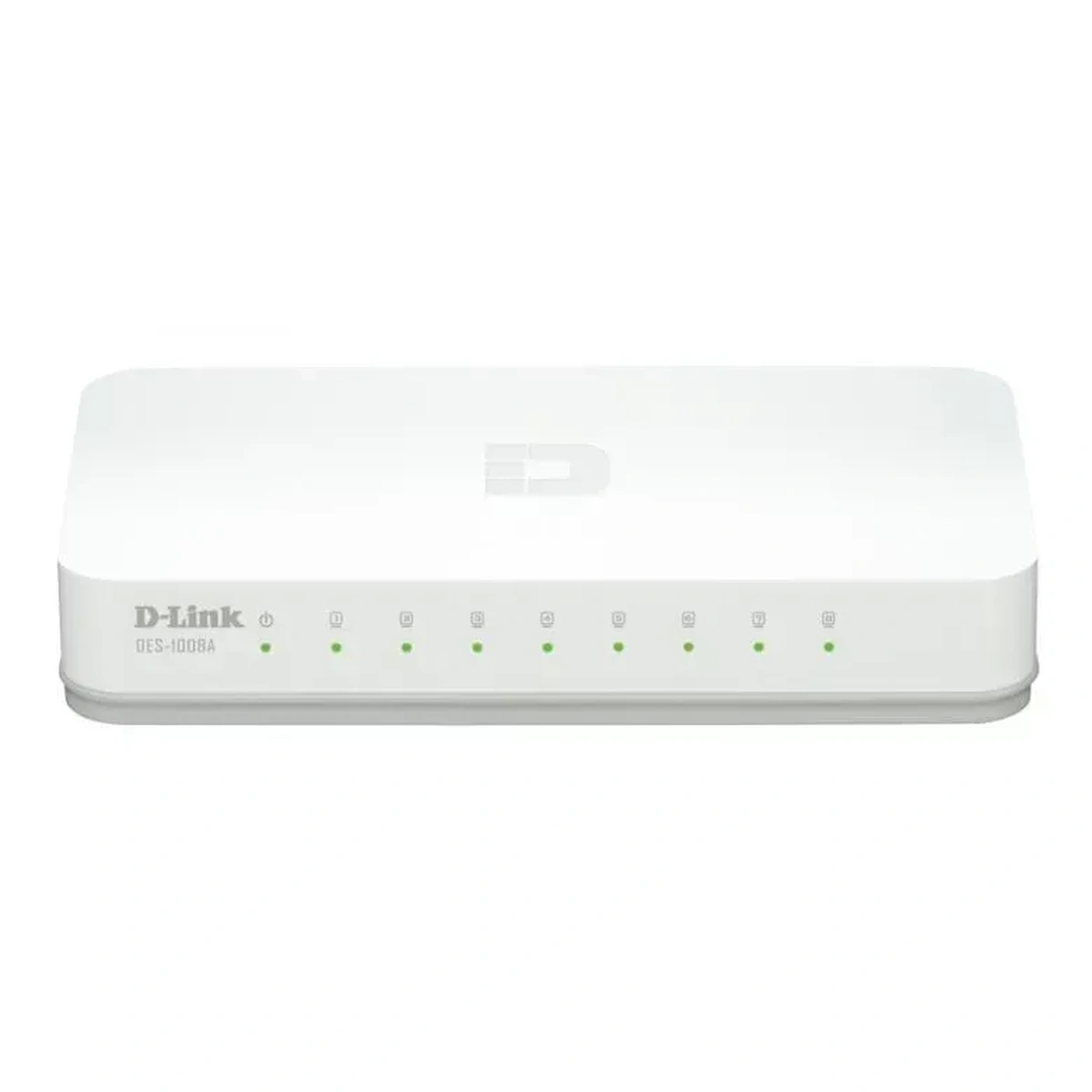

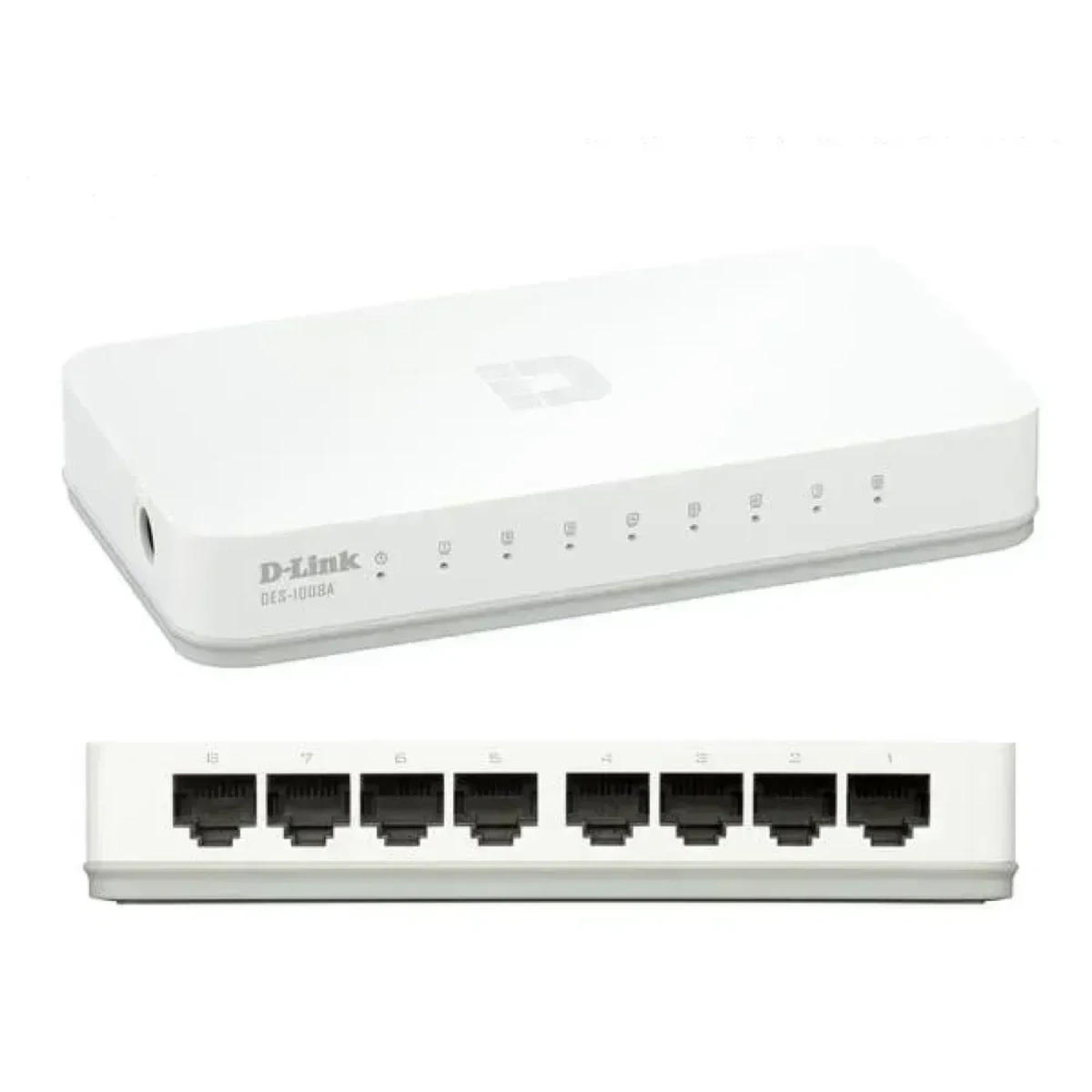

D-Link Switch (No Administrable De 8 Puertos Fast Ethernet 10/100Base-Tx
FICHA TECNICA | |||
PUERTOS | 08 Puertos 10/100Base-TX | ||
![]() |
|||
ESTÁNDARES |
Cumple con las siguientes normas:
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX Soporta Auto-Negotiation para cada puerto Soporta operación Half/Full-Duplex en 10/100Mbps. Soporta back pressure en operación Half-Duplex. Soporta control de flujo de IEEE 802.3x. Auto MDI/MDIX Wire speed reception and transmission RoHS EuP |
||
![]() |
|||
FORWARDING MODE | Store and Forward | ||
![]() |
|||
SWITCHING CAPACITY |
|
||
![]() |
|||
PORT PACKET FILTERING/
FORWARDING RATE
|
14,880 pps por 10M
148,800 pps por 100M |
||
![]() |
|||
PACKET BUFFER MEMORY | 64 KB | ||
![]() |
|||
MAC ADDRESS | 2K MAC addresses | ||
![]() |
|||
DIRECCIONES MULTICAST RESERVADOS |
01-80-C2-00-00-03 — IEEE P802.1X PAE address: Pass Through
01-80-C2-00-00-00 – BPDU: Pass Through 01-80-C2-00-00-0E – LLDP: Pass Through 01-80-C2-00-00-02 – 802.3ad LACP: Filtered |
||
![]() |
|||
OTROS | IPv6: Pass Through | ||
![]() |
|||
CARACTERÍSTICAS FÍSICAS | |||
![]() |
|||
INDICADORES DE LEDS
|
Power
Link/Act (por puerto) |
||
![]() |
|||
FUENTE DE ALIMENTACIÓN | Switching 5V/1A Level “V” Power Adapter | ||
![]() |
|||
CONSUMO DE ENERGÍA |
Máximo [230V input]:
DC input: 1.6 Watts AC input: 2.5 Watts Standby [230V input]: DC input: 0.3 Watts AC input: 0.5 Watts |
||
![]() |
|||
DISIPACION DE CALOR |
Power On (Standby) [230V input]: AC input: 1.706 BTU/h
Max.: AC input: 8.53 BTU/h |
||
![]() |
|||
MTBF | 1,516,996 horas | ||
![]() |
|||
DIMENSIÓN | 128 x 68.5 x 25.4 mm | ||
![]() |
|||
TEMPERATURA DE FUNCIONAMIENTO | 0 ~ 40°C | ||
![]() |
|||
TEMPERATURA DE ALMACENAMIENTO | -10 ~ 70°C | ||
![]() |
|||
HUMEDAD |
Operación: 10%-90%
Almacenaje: 5% ~ 90% |
||
![]() |
|||
CERTIFICACIONES |
EMI:FCC Class B, ICES-003 Class B, CE class B, C-Tick class B
Safety: cUL + CB |
