Asus Placa MadreTuf-Gaming-B560M-Plus-Wifi

SKU: 17471 | NÚMERO DE PARTE: TUF GAMING B560M-PLUS WIFI | CONDICIÓN: NUEVO

Retiro en tienda
Contáctanos para saber fecha de reposición

Despacho a domicilio
Contáctanos para saber fecha de reposición
(Ver otros destinos)

$132.970

Con Transferencia electrónica

$140.280

Con Tarjetas de Crédito/Débito

AGOTADO

Qué opinan nuestros clientes en

4,9 850 reviews

Fuente: Ratings en Google (ver)

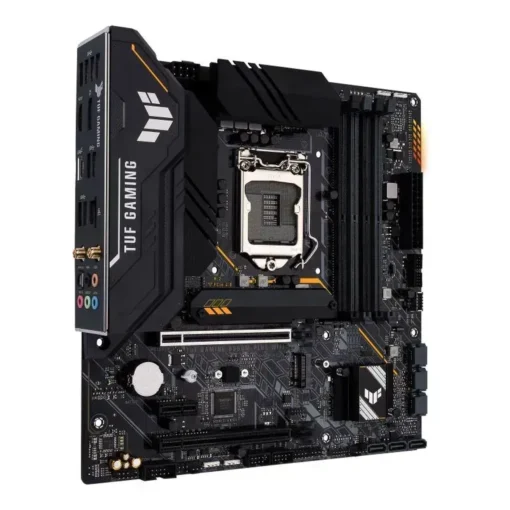

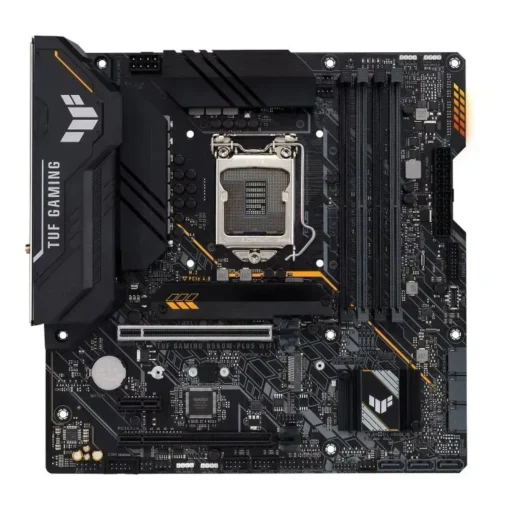

Asus Placa MadreTuf-Gaming-B560M-Plus-Wifi

Motherboard Intel® B560 (LGA 1200) mATX con PCIe 4.0, dos ranuras M.2, etapas de alimentación 8+1, Ethernet de 2,5 Gb Realtek, Intel® Wi-Fi 6, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C®, compatibilidad con Thunderbolt™ 4, iluminación RGB Aura Sync, RGB direccionable

  • Zócalo Intel® LGA 1200: listo para la 11ª generación de procesadores Intel® Core™
  • Solución de energía mejorada: etapas de potencia 8 + 1, PCB de 6 capas, zócalo ProCool y condensadores duraderos para una entrega de energía estable
  • Refrigeración integral: disipador térmico VRM, disipador térmico M.2 flexible, disipador térmico PCH, cabezales de ventilador híbridos y Fan Xpert 2+
  • Conectividad de próxima generación: PCIe 4.0, Realtek Ethernet de 2,5 Gb, Intel® Wi-Fi 6, USB 3.2 Gen 2 trasero, USB 3.2 Gen 1 Tipo-C® frontal y compatibilidad con Thunderbolt™ 4
  • Hecho para juegos en línea: Intel Wi-Fi 6, Realtek Ethernet de 2,5 Gb, TUF LANGuard y tecnología Turbo LAN
  • Cancelación de ruido de IA bidireccional: reduzca el ruido de fondo del micrófono y la salida de audio para una comunicación cristalina en juegos o videoconferencias
  • MyASUS: Ofrezca una variedad de características de soporte, como ayudar a ponerse en contacto con el centro de servicio al cliente, optimizar el rendimiento de la red y colaborar con su teléfono móvil a través de Link to MyASUS

duradero. establo. fidedigno.

ASUS TUF GAMING B560M-PLUS WI-FI toma todos los elementos esenciales de los últimos procesadores Intel® y los combina con características listas para el juego y durabilidad comprobada. Diseñada con componentes de grado militar, una solución de energía mejorada y un sistema de refrigeración integral, esta placa base ofrece un rendimiento sólido y estable como una roca para juegos de maratón. Estéticamente, TUF GAMING B560M-PLUS WI-FI luce el nuevo logotipo de TUF Gaming, e incorpora elementos de diseño geométricos simples para reflejar la fiabilidad y estabilidad que define la serie TUF Gaming.

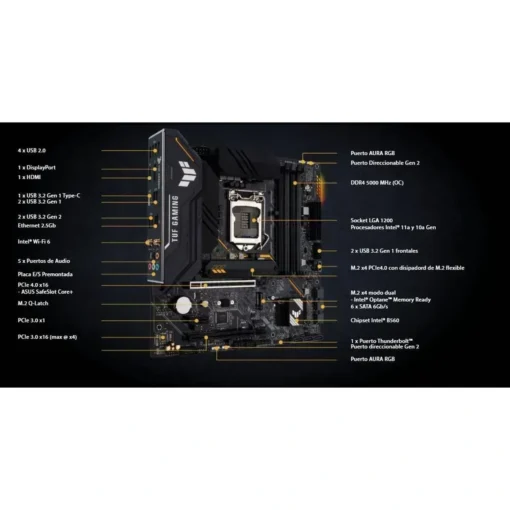

  1. 4 x USB 2.0
  2. 1 x DisplayPort
  3. 1 x HDMI
  4. 1 x USB 3.2 Gen 1 Tipo-C
  5. 2 x USB 3.2 Gen 1
  6. 2 x USB 3.2 Gen 2
  7. Ethernet de 2,5 Gb
  8. Wi-Fi 6 Intel®
  9. 5 x conectores de audio
  1. Escudo de E/S prea montado
  2. PCIe 4.0 x16
    • ASUS SafeSlot Core+
  3. M.2 Q-Latch
  4. PCIe 3.0 x1
  5. PCIe 3.0 x16 (máx @ x4)
  6. Encabezado AURA RGB
  7. Encabezado Gen 2 direccionable
  8. DDR4 5000 MHz (OC)
  9. Zócalo LGA 1200
    • Procesadores Intel® de 11ª y 10ª generación
  1. 2 x USB frontal 3.2 Gen 1
  2. Modo M.2 x4 PCIe 4.0 con disipador térmico M.2 flexible
  3. Modo dual M.2 x4
    • Intel® Optane™ memoria lista
  4. 6 SATA de 6 Gb/s
  5. Intel® B560 Chipset
  6. 1 x encabezado Thunderbolt™
  7. Encabezado Gen 2 direccionable
  8. Encabezado AURA RGB

Especificaciones

  • PART NUMBER : TUF GAMING B560M-PLUS WIFI

    CPU

    Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® B560 Chipset

    Memory

    DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
    * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

    Graphics

    1 x DisplayPort 1.4
    1 x HDMI™ 1.4 / 2.0***
    * Graphics specifications may vary between CPU types.
    ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
    *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

    Expansion Slots

    Intel® 11 th &10 th Gen Processors
    1 x PCIe 4.0/3.0 x16 slot(s)*
    – Intel® 11th Gen processors support PCIe 4.0 x16
    – Intel®10th Gen processors support PCIe 3.0 x16
    Intel® B560 Chipset
    1 x PCIe 3.0 x16 slot (supports x4 mode)
    1 x PCIe 3.0 x1 slots

    Storage

    Intel®11 th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280
    – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
    Intel® B560 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
    6 x SATA 6Gb/s ports
    To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
    * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled.

    Ethernet

    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard

    Wireless & Bluetooth

    Intel® Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.0 or later

    USB

    Rear USB:Total 9 ports
    2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
    3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®)
    4 x USB 2.0 port(s) (4 x Type-A)

    Front USB:Total 7 ports
    1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®)
    1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

    Audio

    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Rear optical S/PDIF out port
    – Premium Japanese audio capacitors
    – Dedicated audio PCB layers

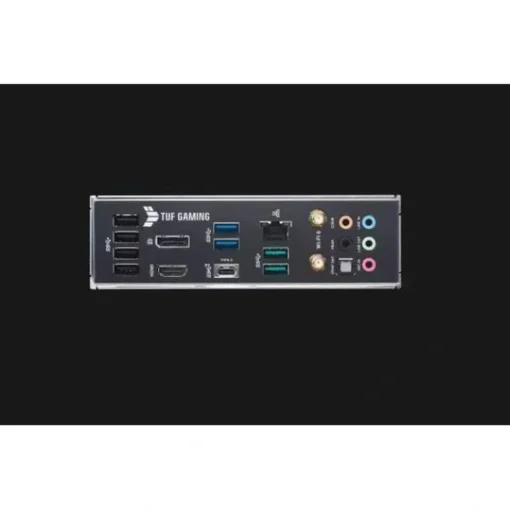

    Back Panel I/O Ports

    2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
    3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)
    4 x USB 2.0 port(s) (4 x Type-A)
    1 x DisplayPort
    1 x HDMI™ port
    1 x ASUS Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port

    Intrernal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header(s)
    1 x 4-pin CPU OPT Fan header(s)
    2 x 4-pin Chassis Fan header(s)
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    6 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
    1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
    Miscellaneous
    2 x AURA Addressable Gen 2 header(s)
    2 x AURA RGB header(s)
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ header

    Special Features

    ASUS TUF PROTECTION
    – Digital power design with DrMOS
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – Flexible M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – ProCool
    – Pre-mounted I/O shield
    AURA Sync
    – AURA RGB header(s)
    – Addressable Gen 2 RGB header(s)

    Software Features

    ASUS Exclusive Software
    Armoury Crate
    – AURA Creator
    – AURA Sync
    – Two-Way AI Noise Cancelation
    AI Suite 3
    – Performance And Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert 2+
    – EZ update
    TUF GAMING CPU-Z
    AI Charger
    ASUS Turbo LAN
    DAEMON Tools
    DTS Custom for GAMING Headsets
    MyAsus
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode

    BIOS

    128 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x M.2 Rubber Package(s)
    1 x M.2 SSD screw package(s)
    1 x TUF Gaming sticker
    Installation Media
    1 x Support DVD
    Documentation
    1 x TUF Certification card
    1 x User manual

    Operating System

    Windows® 10 64-bit

    Form Factor

    mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
