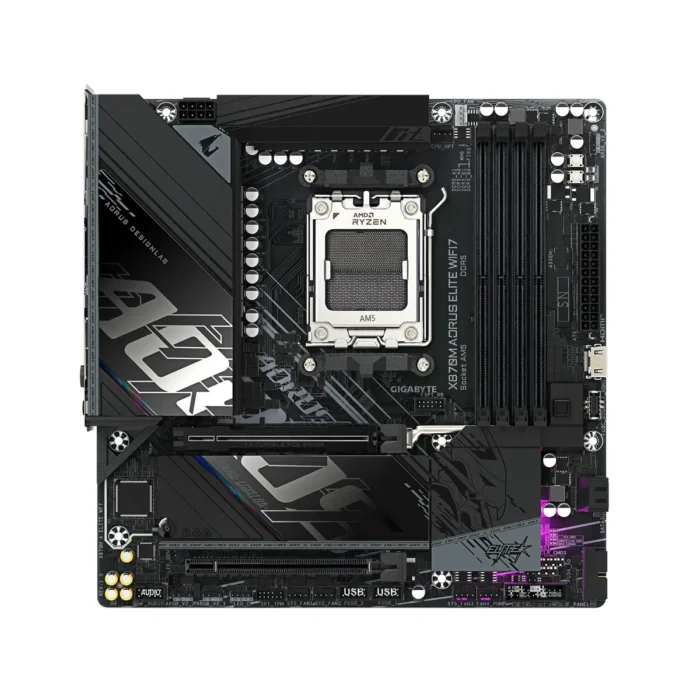

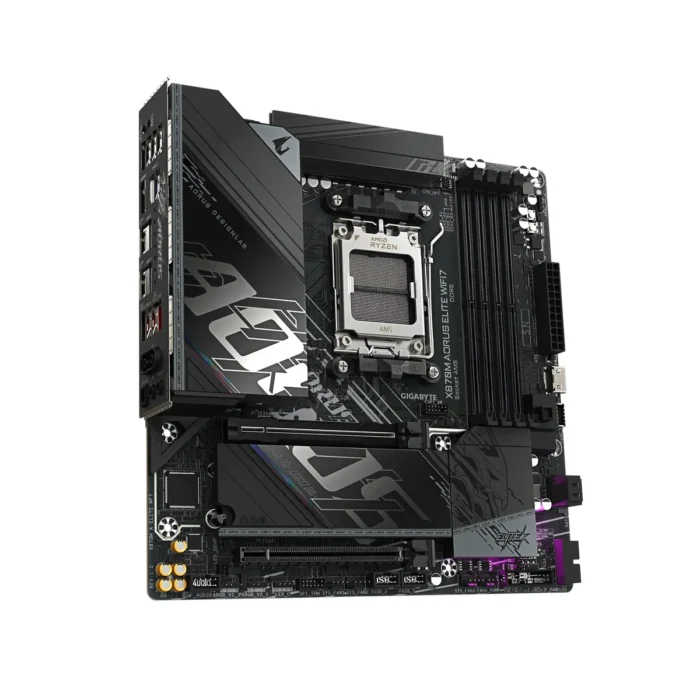

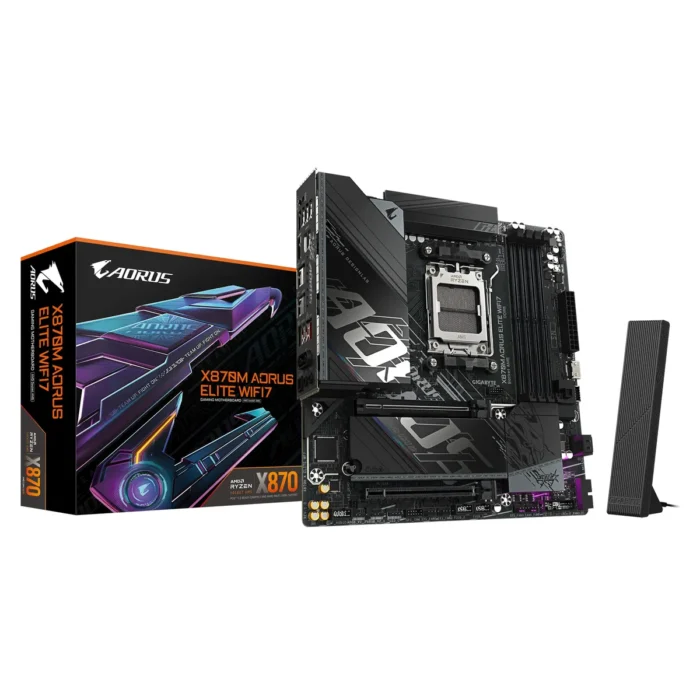

Placa Madre Gigabyte X870M AORUS ELITE WIFI 7 (AM5, DDR5, PCIe 5.0)
MPN: X870M A ELITE WF7ID: 58931
- Socket AM5: Compatible con procesadores AMD Ryzen 9000/8000/7000 con arquitectura X870 para máximo rendimiento actual.
- Memoria DDR5: Soporta overclocking hasta 8200 MT/s con 4 DIMM y perfil AMD EXPO para ampliar capacidad hasta 256 GB.
- Almacenamiento: 2 ranuras M.2 con una de PCIe 5.0 x4 para velocidades ultrarrápidas en SSD de nueva generación.

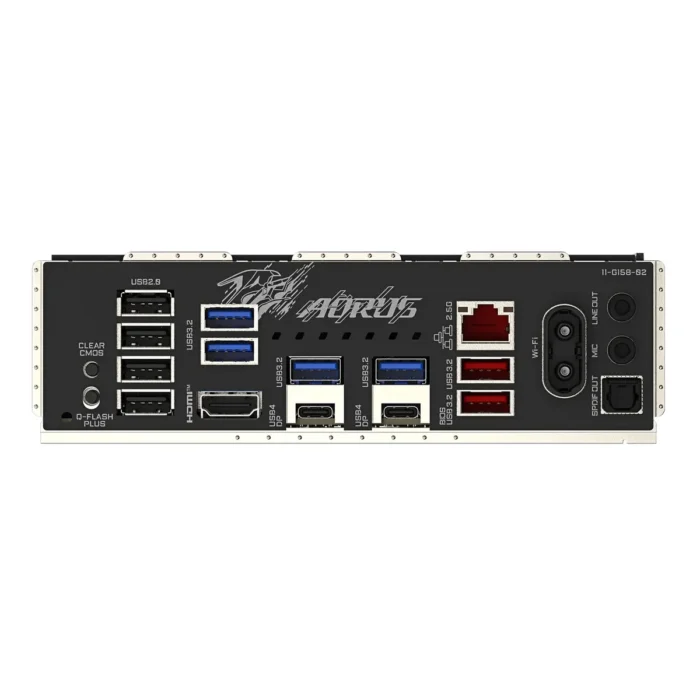

- Conectividad avanzada: Wi-Fi 7, Bluetooth 5.4, LAN 2.5GbE y 2x USB 4.0 con DisplayPort Alt para máxima transferencia de datos.
- Refrigeración: VRM 14+2+2 fases con Thermal Armor Advanced y disipadores M.2 para estabilidad térmica en overclocking.
Con transferencia
Ahorras
Sin stock
Precio normal
Placa Madre Gigabyte X870M AORUS ELITE WIFI 7 (AM5, DDR5, PCIe 5.0)
Características Principales
- Modo Turbo X3D: Libera el rendimiento de juegos de la nueva era - OC DDR5 hasta 8200 MT/s - Socket AM5 de AMD: Compatible con procesadores AMD Ryzen™ de las series 9000/8000/7000 - Solución VRM de doble canal de 14+2+2 fases - DDR5 de doble canal: 4 DIMM compatibles con el módulo de memoria AMD EXPO™ - WIFI EZ-Plug: Diseño rápido y sencillo para la instalación de la antena Wi-Fi - D5 Bionic Corsa para un rendimiento de memoria infinito - EZ-Latch: Ranuras PCIe y M.2 con liberación rápida y diseño sin tornillos - EZ-Latch Click: Disipadores M.2 sin tornillos - Sensor Panel Link: Puerto de vídeo integrado para una configuración sencilla del panel en el chasis - Interfaz intuitiva: Multitema, control de ventilador AIO y Q-Flash Auto ScaninBIOS y software - Almacenamiento ultrarrápido: 2 ranuras M.2, incluyendo PCIe 5.0 x4 - Eficiencia térmica: VRM Thermal Armor Advanced y M.2 Thermal Guard Ext. - Conexión de red rápida: LAN 2.5GbE y Wi-Fi 7 - Conectividad extendida: Doble USB 4.0 tipo C con DP-Alt, HDMI - Ranura PCIe UD X: Ranura PCIe 5.0 x16 con una potencia 10 veces superior para tarjeta gráfica
Procesador AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD X870 Memoria Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Gráficos Integrados Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) Audio Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek® Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations *** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details. Puertos de Expansión 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: ?AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode ?AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode ?AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Interfaz de Almacenamiento 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: ?AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs ?AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs ?AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices USB CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers Conectores Internos de E/S 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper * Actual support may vary by CPU. Conectores del Panel Trasero 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x HDMI port* 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector * Actual support may vary by CPU. Controlador de E/S iTE® I/O Controller Chip Monitorización H/W Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Características Únicas Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Software Incluido Norton® Internet Security (OEM version) Sistema Operativo Support for Windows 11 64-bit Diseño Micro ATX Form Factor; 24.4cm x 24.4cm
