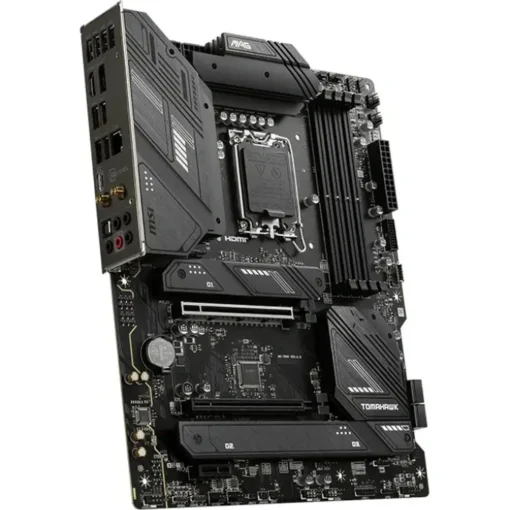

Placa Madre ATX MSI MAG B760 TOMAHAWK WIFI, Intel LGA 1700, DDR5, WiFi 6E

MPN: MAG B760 TOMAHAWK WIFIID: 46921
Sobre el producto
  • Canales de RAM: Dual channel
  • Chipset: Intel B760 (LGA 1700)
  • Formato: ATX
  • Plataforma: Intel
  • Socket: LGA 1700
  • Soporte RGB: ARGB Programable (Addressable RGB / 3-pin / 5V)
  • Tipo de Almacenamiento: SSD Nvme Gen 4
  • Tipo de RAM: DDR5
  • Video Integrado: Redirige gráficos del procesador
  • WI-FI: WiFi 6
  • Configuración de RAM: 4x DDR5
Con transferencia
Ahorras
Sin stock
Precio normal

Placa Madre ATX MSI MAG B760 TOMAHAWK WIFI, Intel LGA 1700, DDR5, WiFi 6E


Chipset
 INTEL B760

CPU
 Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA1700

Memory
 4x DDR5, Maximum Memory Capacity 256GB

Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel

®

Extreme Memory Profile

Onboard Graphics
 1x HDMI™

Support HDMI

TM

2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz*


*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot
 2x PCI-E x16 slot (Qty)

Supports x16/x4

1x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Audio
 Realtek

®

ALC897 Codec

7.1-Channel High Performance Audio

Supports S/PDIF output

Storage
 3x M.2 (Qty)

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G (Qty)

RAID
 Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Front)

4x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

LAN
 Realtek

®

2.5Gbps LAN

Internal IO
 1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

5x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH
 Intel

®

Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth

®

5.3, FIPS, FISMA


* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE
 4x EZ Debug LED

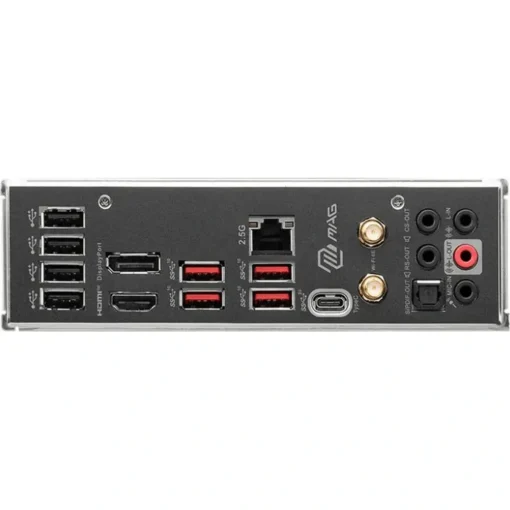

BACK PANEL PORTS

  1. USB 2.0
  2. DisplayPort 1.4
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. 2.5G LAN Port
  5. Wi-Fi / Bluetooth Antenna
  6. HD Audio Connectors
  7. HDMI™ 2.1 Port
  8. USB 3.2 Gen 2x2 20Gbps Type-C
  9. Optical S/PDIF OUT


OPERATING SYSTEM
 Support for Windows

®

11 64-bit, Windows

®

10 64-bit

BOX CONTENT

PCB Info
 ATX

243.84mmx304.8mm
