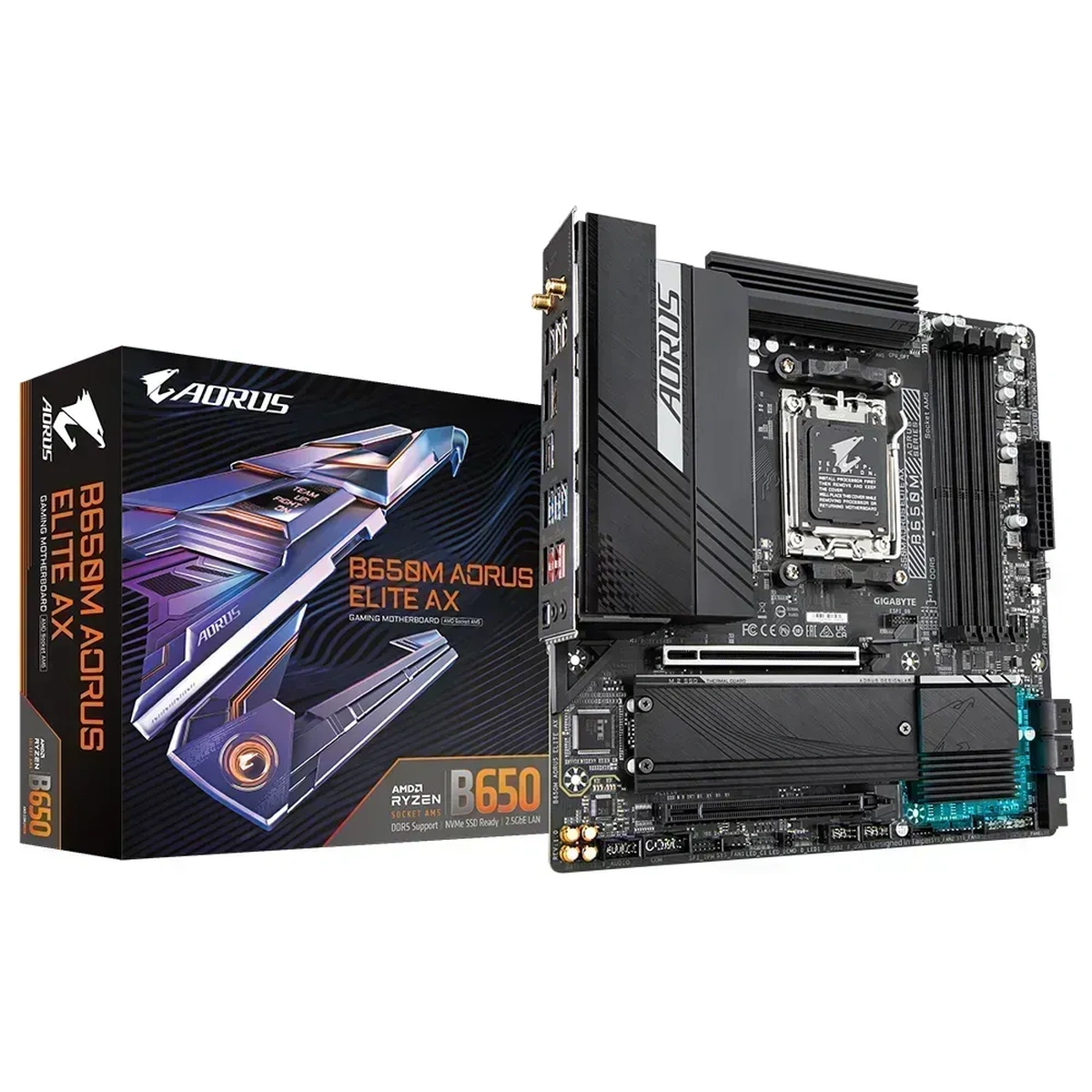

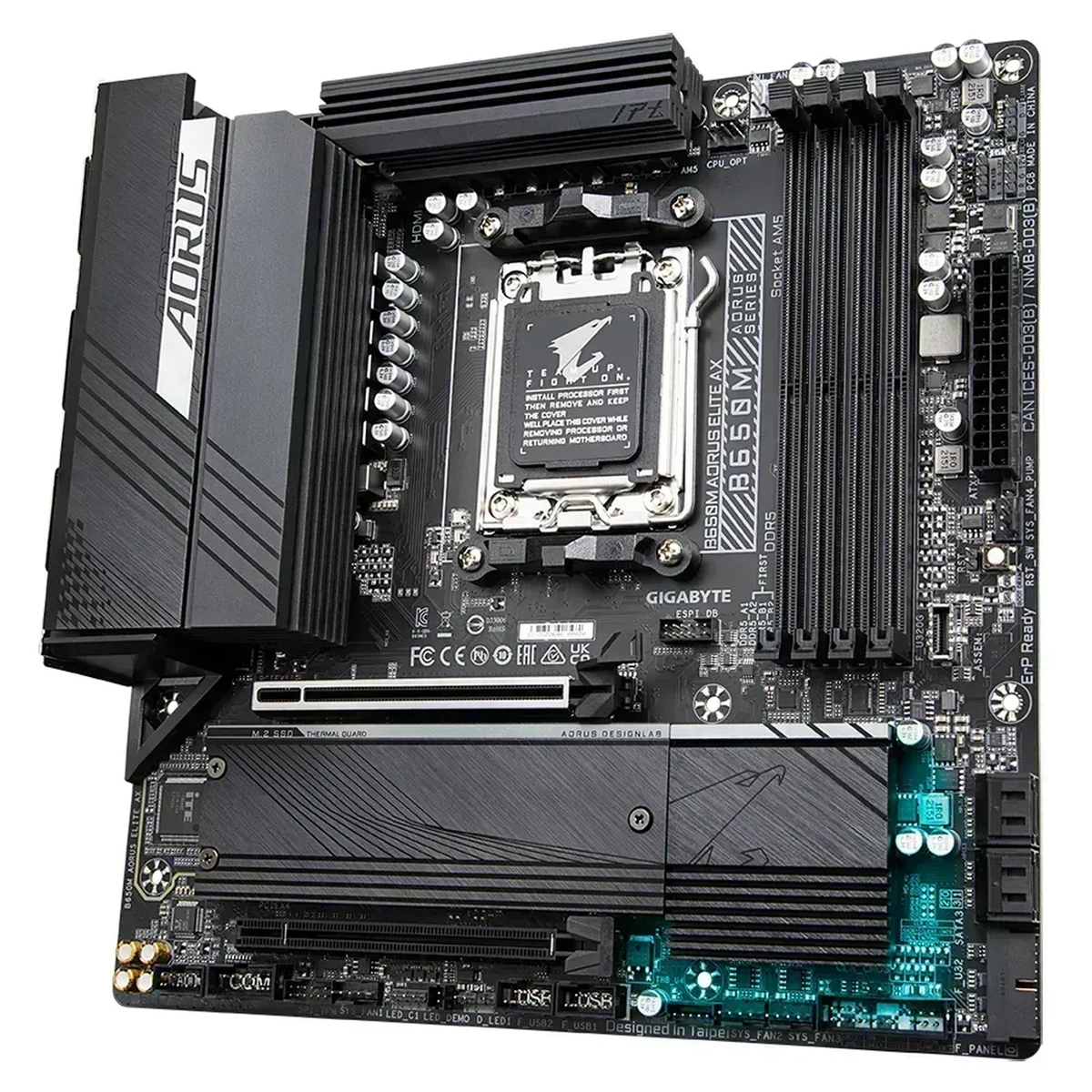

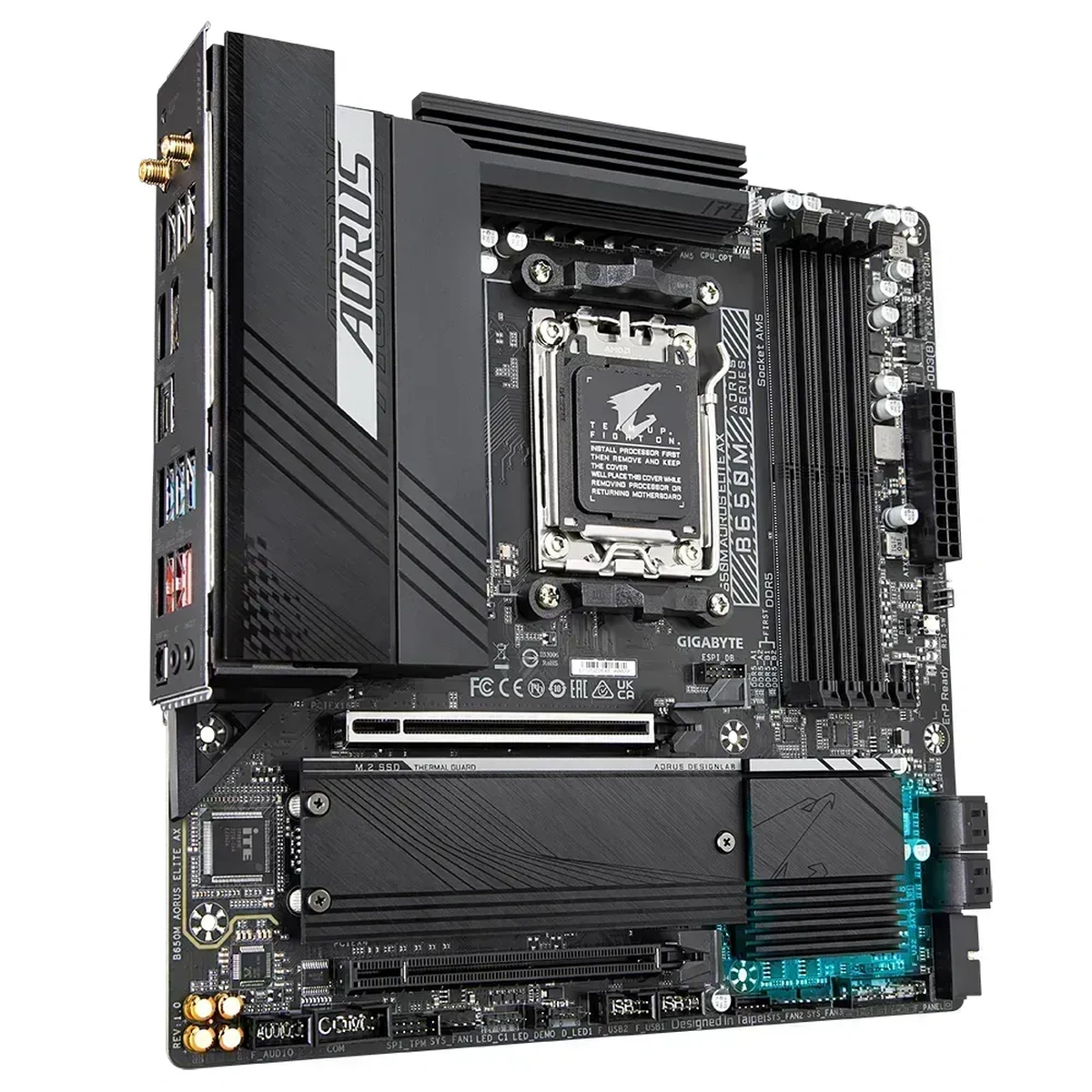

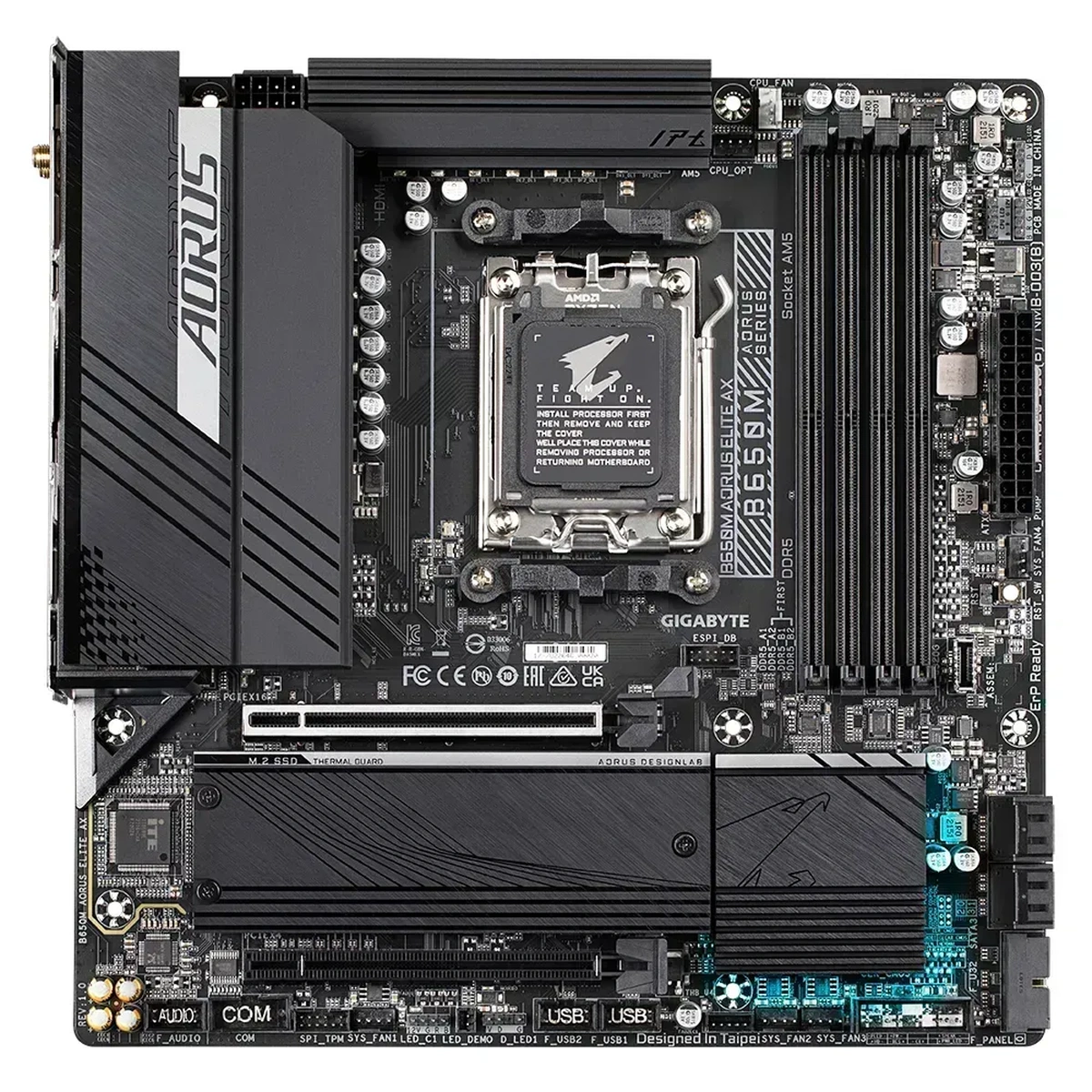

Placa Madre Gigabyte B650M AORUS ELITE AX Socket AMD AM5
-
CPUCPU
-
AMD Socket AM5, support for:
AMD Ryzen™ 7000 Series Processors
(Please refer “CPU Support List” for more information.) -
AMD Socket AM5, support for:
-
ChipsetChipset
- AMD B650
-
MemoryMemory
- Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.) -
Onboard GraphicsOnboard GraphicsIntegrated Graphics Processor:
-
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR. -
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.) -
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
-
AudioAudio
-
Realtek
®
Audio CODEC - High Definition Audio
-
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. - Support for S/PDIF Out
-
Realtek
-
LANLAN
-
Realtek
®
2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Realtek
-
Wireless Communication moduleWireless Communication moduleAMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel
®
Wi-Fi 6E AX210 (For PCB rev. 1.1)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.) -
Expansion SlotsExpansion SlotsCPU:
-
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
-
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
-
Storage InterfaceStorage InterfaceCPU:
-
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU. - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices -
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
-
USBUSBCPU:
-
1 x USB Type-C
®
port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panel
Chipset:-
1 x USB Type-C
®
port with USB 3.2 Gen 2×2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports on the back pane
-
1 x USB Type-C
-
Internal I/O ConnectorsInternal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x CPU cooler LED strip/RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
-
1 x USB Type-C
®
header, with USB 3.2 Gen 2×2 support - 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x THB_U4 add-in card connector
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
-

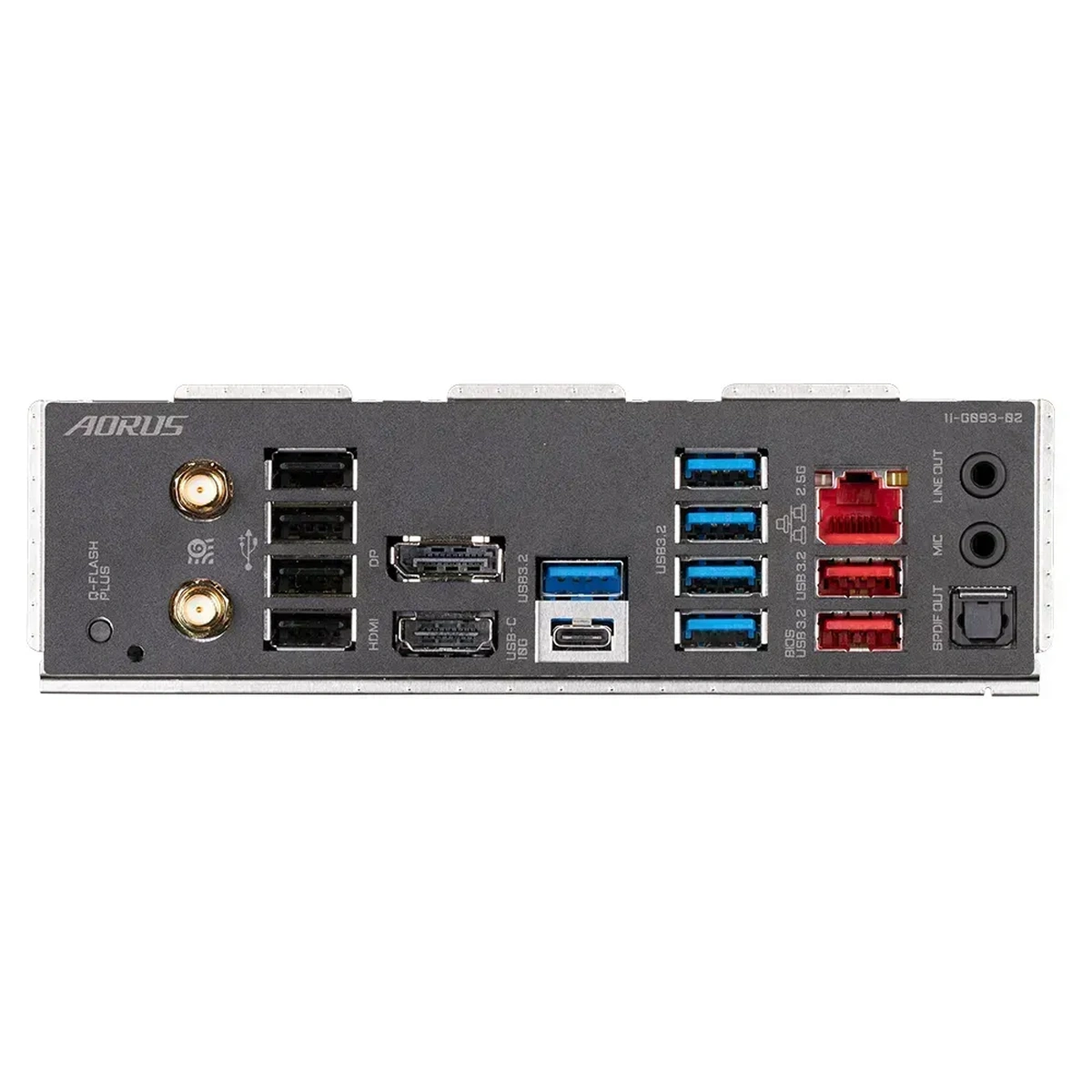

Back Panel ConnectorsBack Panel Connectors
- 1 x Q-Flash Plus button
- 2 x SMA antenna connectors (2T2R)
- 1 x DisplayPort
- 1 x HDMI port
-
1 x USB Type-C
®
port, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red)
- 5 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
-
I/O ControllerI/O Controller
-
iTE
®
I/O Controller Chip
-
iTE
-
H/W MonitoringH/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
-
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
-
BIOSBIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique FeaturesUnique Features
-
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions
of each application may also vary depending on motherboard specifications. - Support for Q-Flash
- Support for Q-Flash Plus
-
Support for GIGABYTE Control Center (GCC)
-
Bundled SoftwareBundled Software
-
Norton
®
Internet Security (OEM version) - LAN bandwidth management software
-
Norton
-
Operating SystemOperating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
-
Form FactorForm Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
Procesador | |
Fabricante de procesador | AMD |
Socket de procesador | Zócalo AM5 |
Procesador compatible | AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
Sockets de procesador soportados | Zócalo AM5 |
Memoria | |
Tipos de memoria compatibles | DDR5-SDRAM |
Número de ranuras de memoria | 4 |
Tipo de ranuras de memoria | DIMM |
Canales de memoria | Doble canal |
No ECC | Si |
Velocidades de reloj de memoria soportadas | 4400,4800,5200,5600,6000,6200,6400,6600 MHz |
Velocidad del reloj de memoria máxima admitida | 6600 MHz |
Memoria interna máxima | 128 GB |
Memoria sin buffer | Si |
Reguladores del almacenaje | |
Tipos de unidades de almacenamiento admitidas | HDD & SSD |
Interfaces de disco de almacenamiento soportados | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
Número de unidades de almacenamiento compatibles | 6 |
Compatibilidad con RAID | Si |
Niveles RAID | 0, 1, 10 |
Gráficos | |
Soporte para proceso paralelo | No compatible |
Máxima resolución | 4096 x 2160 Pixeles |
HDCP | Si |
Interno I/O | |
USB 2.0, conectores | 2 |
Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
Conectores USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Número de conectores SATA III | 4 |
Conector de audio en panel frontal | Si |
Conector de panel delantero | Si |
Conector de potencia ATX (24 pines) | Si |
Conector de ventilador CPU | Si |
Conector de energía EPS (8-pin) | Si |
Conector TPM | Si |
Cabecera de puerto serie | 1 |
Encabezados Thunderbolt | 1 |
Conector eléctrico de 12 V | Si |
Conector para tiras LED RGB | Si |
Panel trasero Puertos de I/O | |
Cantidad de puertos USB 2.0 | 4 |
Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) | 5 |
Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2) | 2 |
Cantidad de puertos tipo C USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Ethernet LAN (RJ-45) cantidad de puertos | 1 |
Número de puertos HDMI | 1 |
Versión HDMI | 2.1 |
Cantidad de DisplayPorts | 1 |
Versión de DisplayPort | 1.4 |
Salidas para auriculares | 2 |
Micrófono, jack de entrada | Si |
Puerto de salida S/PDIF | Si |
Conector para antena WiFi-AP | 2 |
Conector USB | USB tipo A, USB Tipo C |
Conexión | |
Ethernet | Si |
Tipo de interfaz ethernet | 2.5 Gigabit Ethernet |
Wifi | Si |
Estándar Wi-Fi | Wi-Fi 6E (802.11ax) |
Wi-Fi estándares | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Modelo de controlador WLAN | AMD RZ616 |
Bluetooth | Si |
Versión de Bluetooth | 5.2 |
Características | |
Chipset | AMD B650 |
Canales de salida de audio | 7.1 canales |
Monitoreo de la salud de PC | Ventilador, Temperatura, Tensión, Water cooling |
Componente para | PC |
Factor de forma | micro ATX |
Familia del chipset | AMD |
Sistema operativo Windows soportado | Windows 10 x64, Windows 11 x64 |
Ranuras de expansión | |
Ranuras x16 PCI Express | 2 |
Número de ranuras M.2 (M) | 2 |
BIOS | |
Tipos de BIOS | UEFI AMI |
BIOS, tamaño de memoria | 256 MB/s |
Versión ACPI | 5.0 |
Jumper Clear CMOS | Si |
Versión de la interfaz de administración de escritorio (DMI) | 2.7 |
Versión de BIOS de administración del sistema (SMBIOS) | 2.7 |
Peso y dimensiones | |
Ancho | 244 mm |
Profundidad | 244 mm |
Contenido del embalaje | |
Cables incluidos | SATA |
Software incluido | Norton Internet Security (versión OEM) |
