Placa Madre WorkStation ASUS PRO WS WRX80E – SAGE SE WiFi6
SKU: 16458 | NÚMERO DE PARTE: 90MB1590-M0AAY0 | CONDICIÓN: NUEVO
Retiro en tienda
Contáctanos para saber fecha de reposición
Despacho a domicilio Contáctanos para saber fecha de reposición(Ver otros destinos)
$1.149.750
Con Transferencia electrónica
$1.212.986
Con Tarjetas de Crédito/Débito
AGOTADO

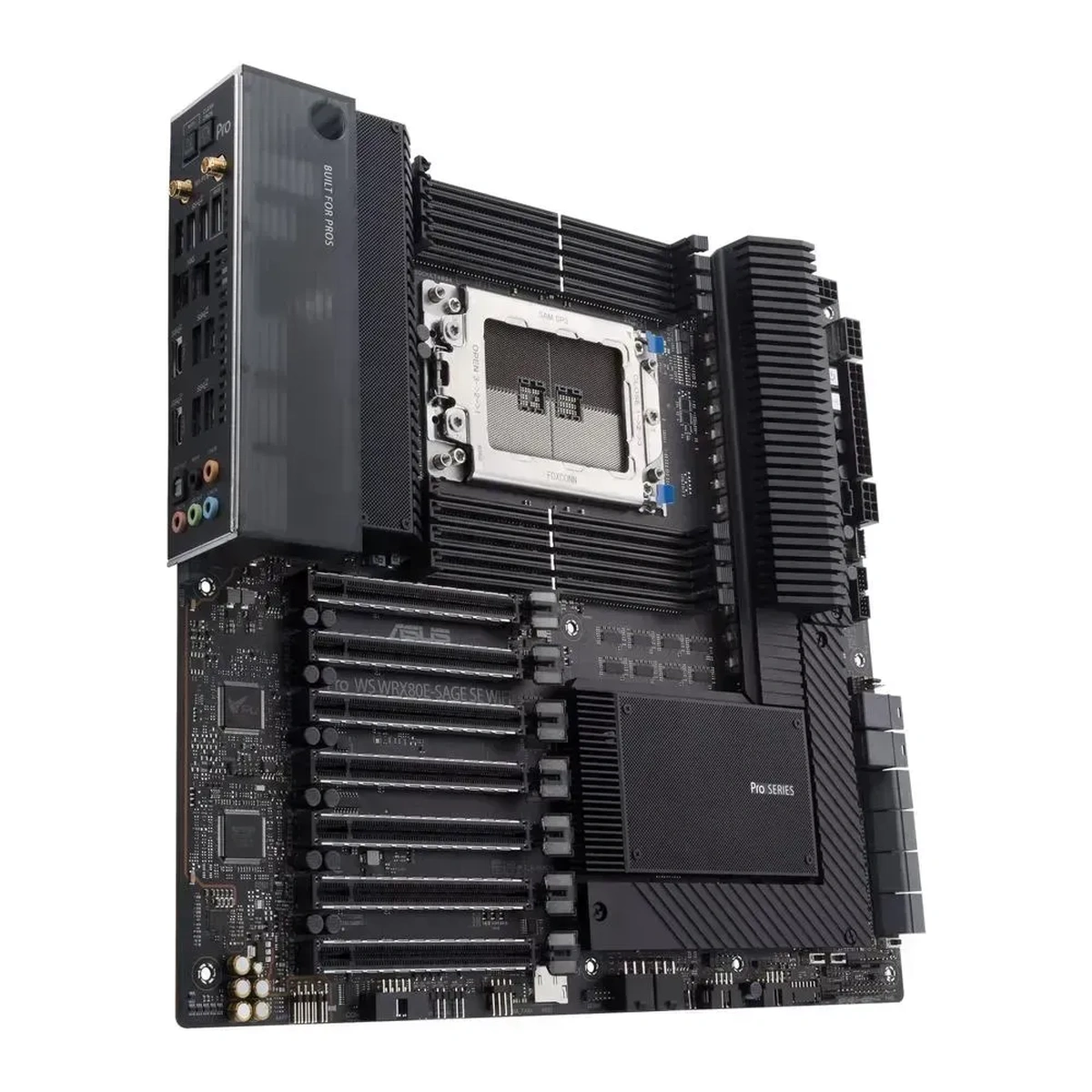

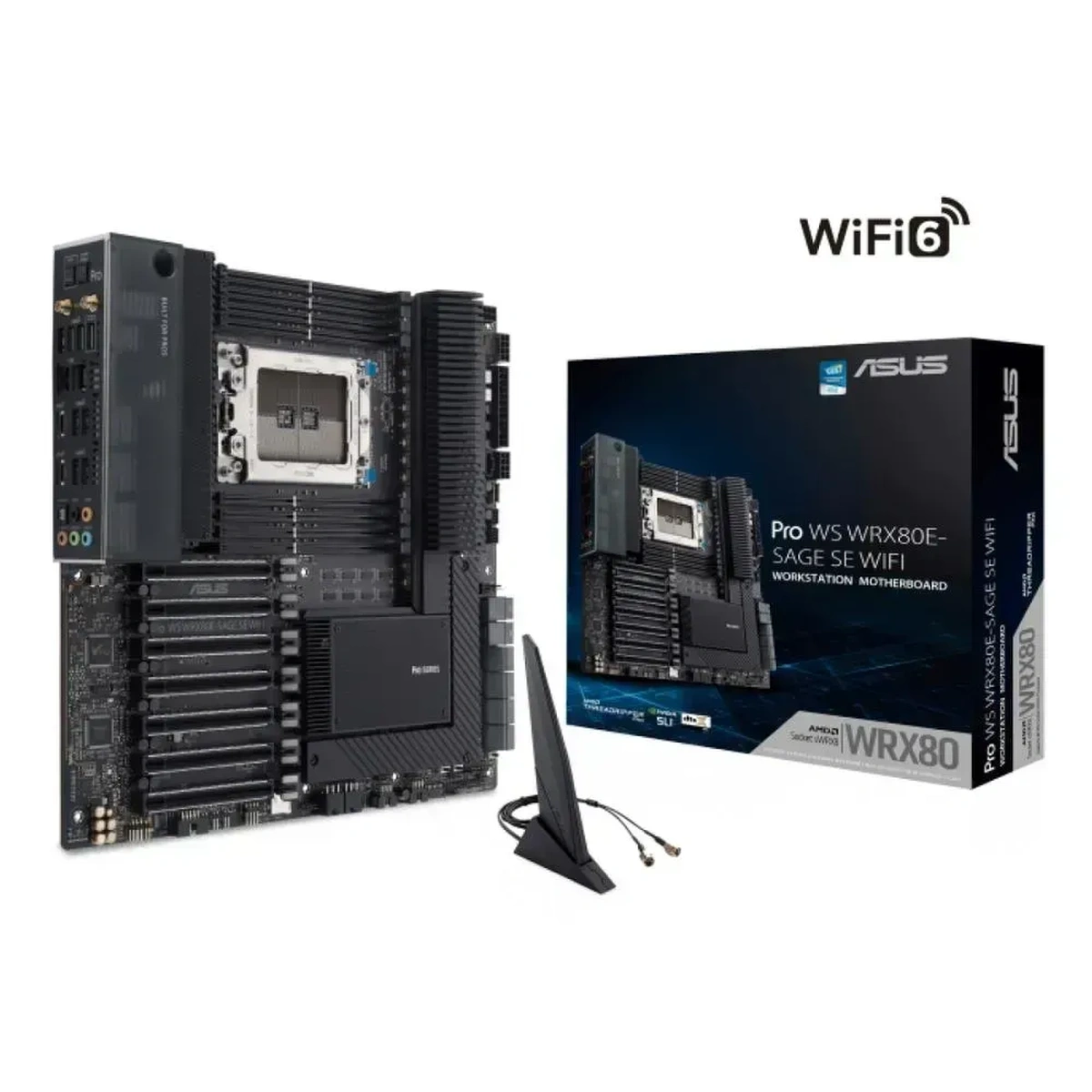

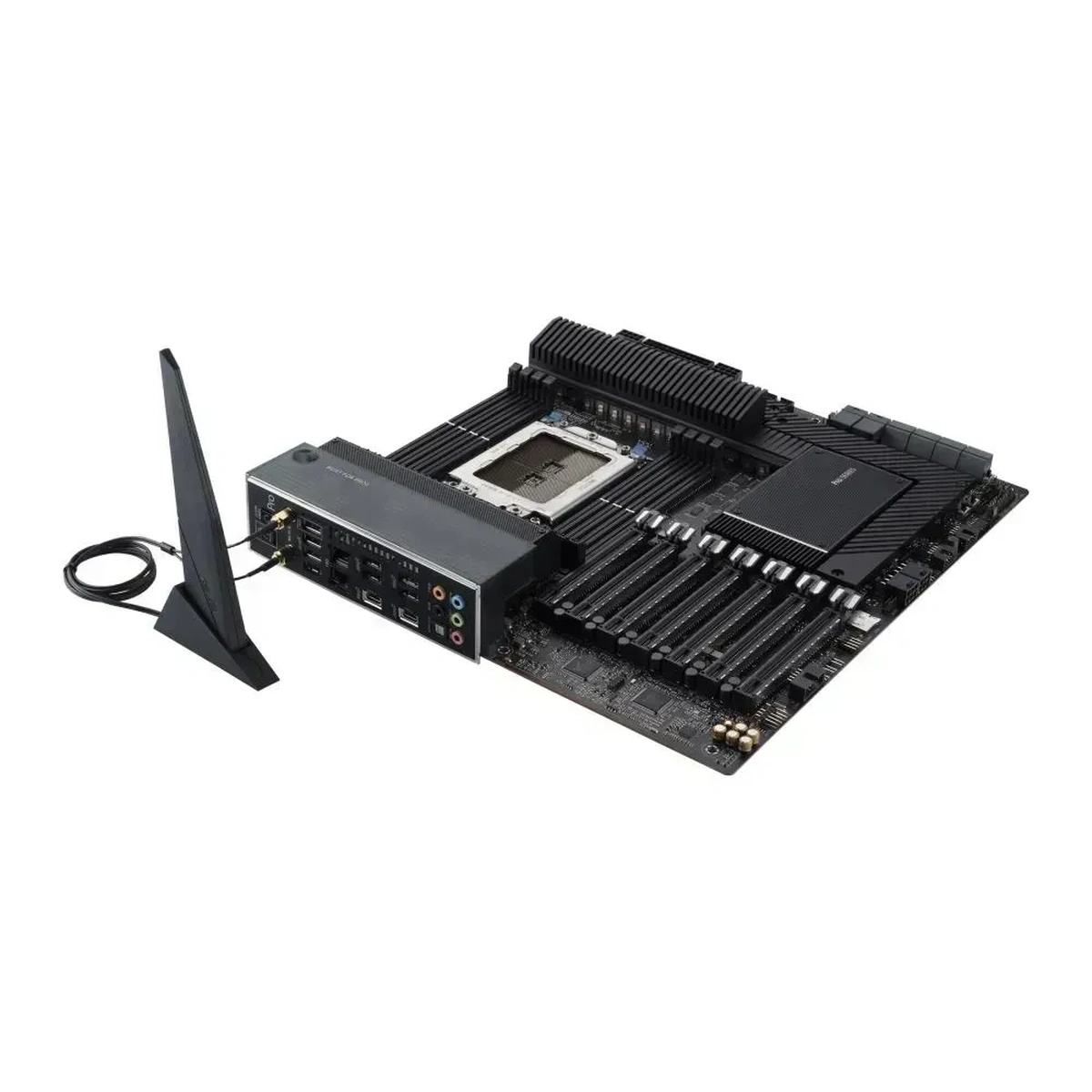

Placa Madre WorkStation ASUS PRO WS WRX80E – SAGE SE WiFi6
AMD sWRX8 socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors
Ultrafast connectivity: USB 3.2 Gen 2×2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet
ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security
Product Name: PRO WS WRX80E-SAGE SE WIFI
Part Number: 90MB1590-M0AAY0
$999.99
Starting at $91/mo with Affirm. Prequalify now
Notify me
Out of stock
Delivery
Most orders ship out within 24 hours
Free Shipping
Free shipping
For orders over $29.99
Online customer service
Get help buying
You can email, chat, or call us any time
Safe and Secure Payment
Safe and secure payment
Your data is encrypted for your protection
3 years manufacturer warranty
Warranty
3 year manufacturer warranty
Tech Specs
CPU
AMD® Ryzen™ Threadripper™ Pro Processors*
* Refer to www.asus.com for CPU support list.
AMD® Ryzen™ Threadripper™ Pro Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD WRX80 Chipset
AMD WRX80 Chipset
Memory
Memory Channels:8DDR4 (Eight Channel)
Max Memory Size:2048GB
Memory Channels:8DDR4 (Eight Channel)
Max Memory Size:2048GB
8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory*
8 Channel Memory Architecture
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Expansion Slots
AMD Ryzen™ Threadripper™ PRO Series Processors
7 x PCIe 4.0/3.0 x16 slot(s)*
- Support PCIe bandwidth bifurcation for RAID on CPU function.
Multi-GPU Support
Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
Storage
Supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
Supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ Threadripper™ PRO Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*
AMD WRX80 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*
4 x SATA 6Gb/s ports
ASMedia ASM1061 Controller
4 x SATA 6Gb/s ports
Supports NVMe RAID configurations via M.2 storages
*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.
Ethernet
1 x Intel® X550-AT2 dual 10Gb Ethernet
Ethernet
1 x Intel® X550-AT2 dual 10Gb Ethernet
Wireless & Bluetooth
Intel® Wi-Fi 6 AX200
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports 2.4/5GHz Dual-Band
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Bluetooth v5.1*
* Bluetooth v5.1 function will be ready in Windows® 10 build 19041 or later.
Intel® Wi-Fi 6 AX200
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports 2.4/5GHz Dual-Band
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Bluetooth v5.1*
* Bluetooth v5.1 function will be ready in Windows® 10 build 19041 or later.
USB
Rear USB:Total 10 ports
Rear USB:Total 10 ports
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
Front USB:Total 7 ports
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
Audio
Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
-
Impedance sense for front and rear headphone outputs
-
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
-
Supports up to 32-Bit/384 kHz playback”
Audio Features
-
Audio Shielding
-
Power pre-regulator reduces power input noise to ensure consistent performance
-
Rear optical S/PDIF out port
-
Premium Japanese audio capacitors
-
Dedicated audio PCB layers
-
Unique de-pop circuit
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)
1 x ASUS Wi-Fi Module
2 x Intel® X550-AT2 dual 10Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
6 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x Chipset Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
2 x 6-pin PCIe Graphics Card connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
2 x U.2 slots
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
BMC Related
1 x BMC switch
1 x IPMI switch
1 x Messange LED header
1 x Micro SD card socket
2 x LAN LED header(s)
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header
1 x VPP_I2C header
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header
1 x Thermal Sensor header
Special Features
ASUS Q-Design
Special Features
ASUS Q-Design
-
Q-Code
-
Q-Connector
-
Q-DIMM
-
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
-
Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
-
BIOS FlashBack™ button
-
BIOS FlashBack™ LED
-
Clear CMOS button
-
ProCool II
-
Pre-mounted I/O shield
-
SafeSlot
Bespoke Motherboard Design & Business Focused Features
-
Event Log in ASMB9-iKVM
-
24/7 Reliability
-
Overcurrent Protection
ASMB9-iKVM for KVM-over-Internet
Software Features
ASUS Exclusive Software
Software Features
ASUS Exclusive Software
Armoury Crate
ASUS CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS:X® Ultra
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
-
ASUS CrashFree BIOS 3
-
ASUS EZ Flash 3
-
ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
WOL by PME, PXE

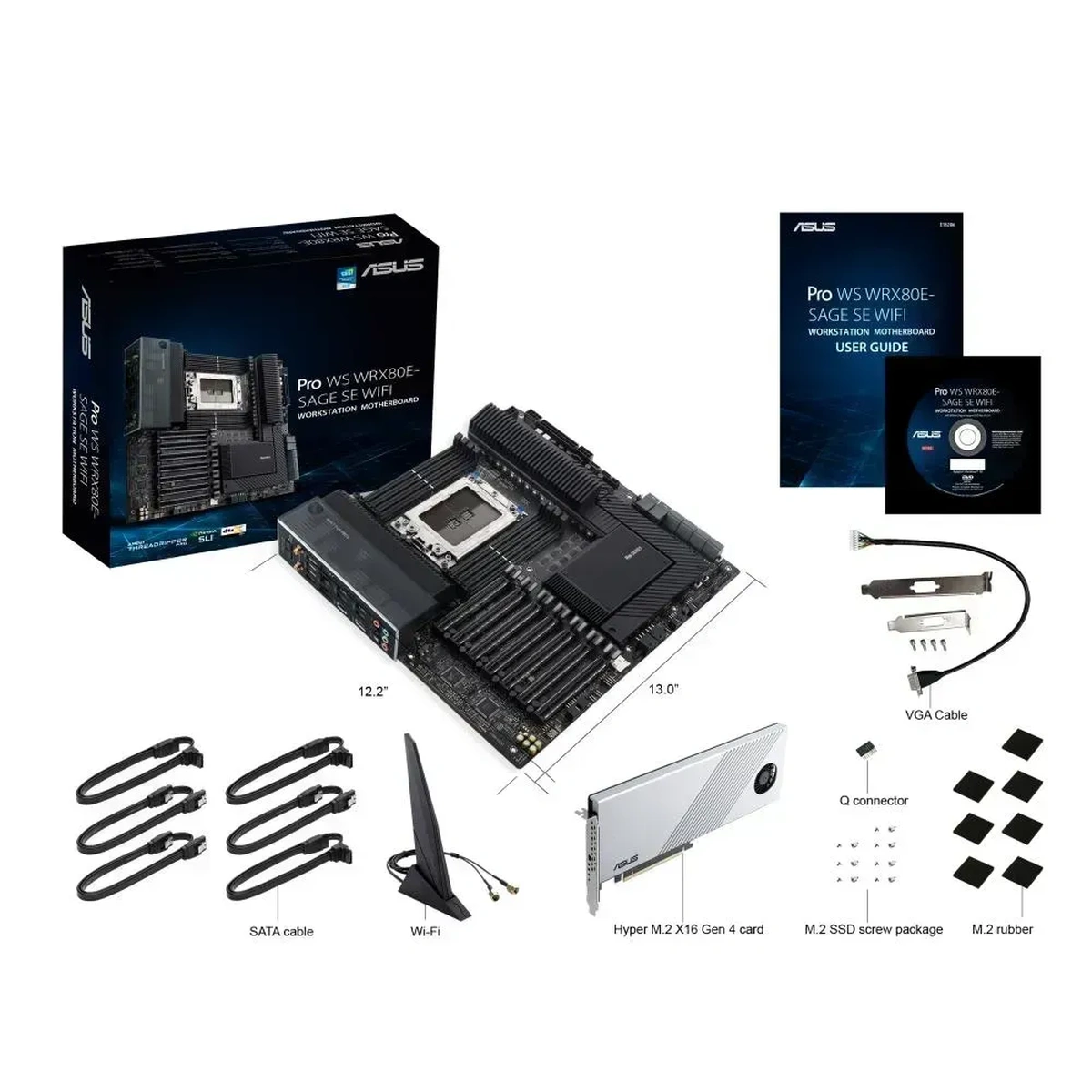

Accessories
Cables
Cables
6 x SATA 6Gb/s cables
1 x VGA cable
Miscellaneous
1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas

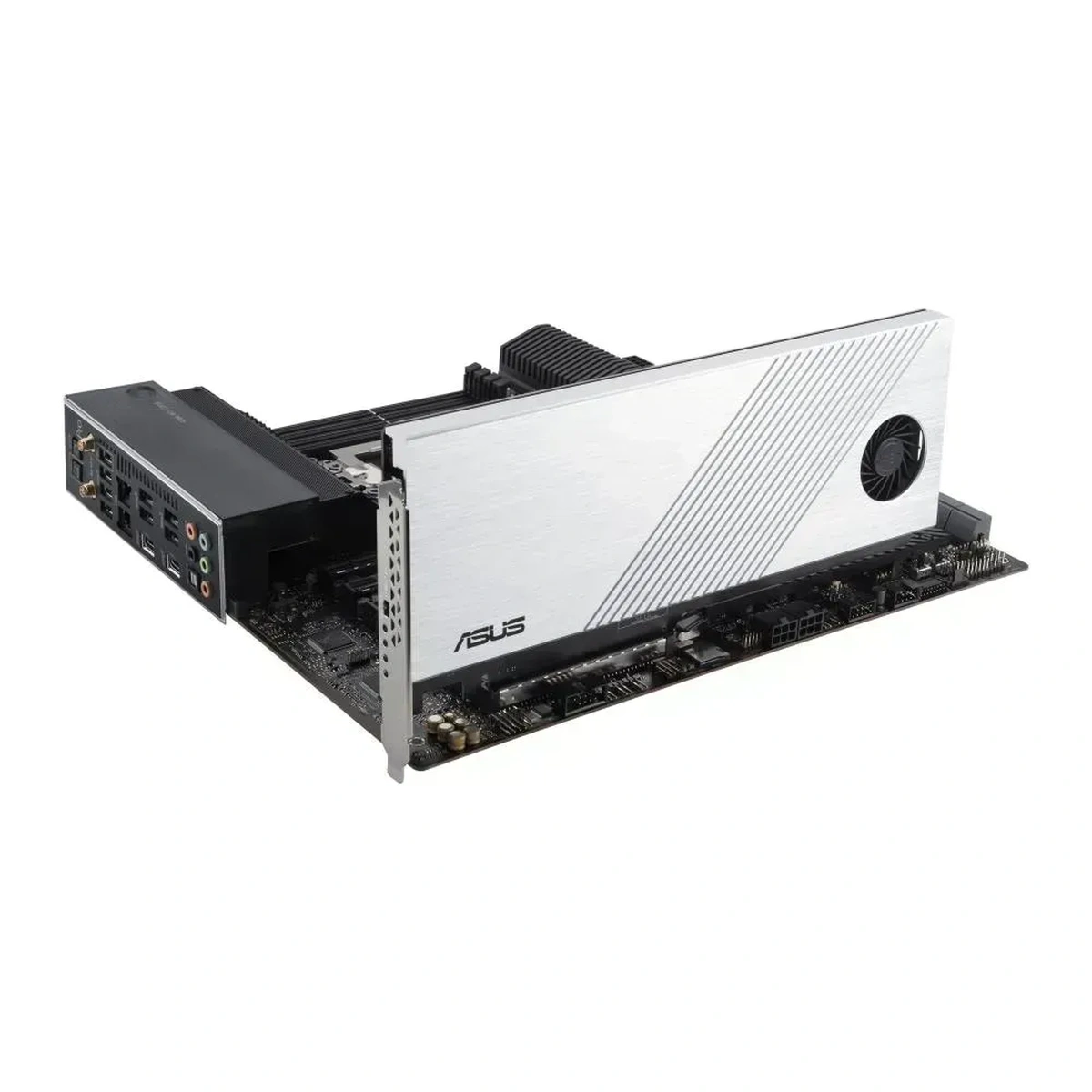

1 x Hyper M.2 X16 Gen 4 Card
3 x M.2 Rubber Package(s)
3 x M.2 SSD screw package(s)
1 x Q-connector
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows 10 64bit
Operating System
Windows 10 64bit
Form Factor
EATX
30.98cm*33.02cm
EATX
30.98cm*33.02cm
